Handmade Geometric Fretwork Screen

The steps below follow the order of the work for this sketches/renderings project.

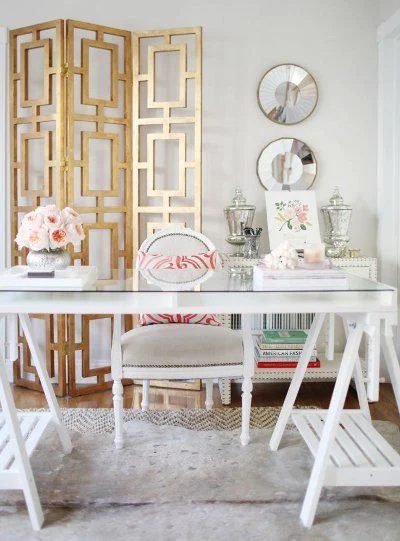

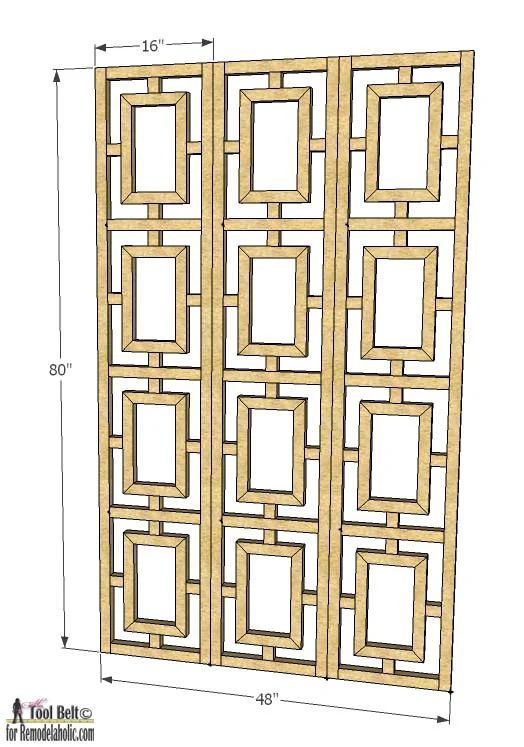

Hi, it’s Amy from Hertoolbelt with another build plan. In case you missed the last project, we built a vintage crate shelf to get organized. This week our project will add a little style to any room, a Handmade fretwork screen with a geometric rectangular motif, since geometric is both classic and presently trending, which is convenient. The inspiration for this project comes from this striking office space, this studio by Dallas Shaw.

Build a unique room divider to add style to your space, free Handmade fretwork screen plans on #Bekob.

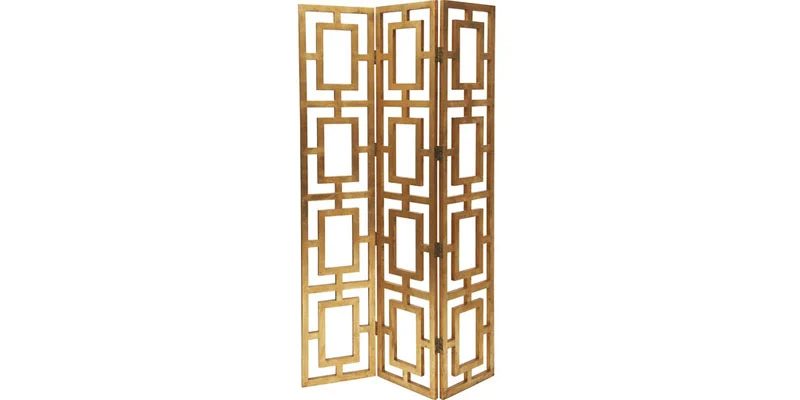

Isn’t that gold fretwork screen fun! It was previously available on One King’s Lane for $599. We can build a Handmade version for a small fraction of the price.

How to Build a Handmade Fretwork Screen

Build a unique room divider to add style to your space, free Handmade fretwork screen plans on #Bekob.

Materials

15 – 2″ x 2″ x 8′ (actual 1 1/2″ x 1 1 /2″ x 8′)
8 – 2″ hinges narrow utility hinge or around that size
wood glue
2″ brad nails or 2 1/2″ screws
1 1/2″ brad nails for toenailing
wood filler
primer
paint

Cut List

Quantity	Thickness	Width	Length
6	1 1/2″	1 1/2″	80″
24	1 1/2″	1 1/2″	14 1/8″ with 45 deg cuts on each end
15	1 1/2″	1 1/2″	13″
24	1 1/2″	1 1/2″	9″ with 45 deg cuts on each end
48	1 1/2″	1 1/2″	2″

Step 1

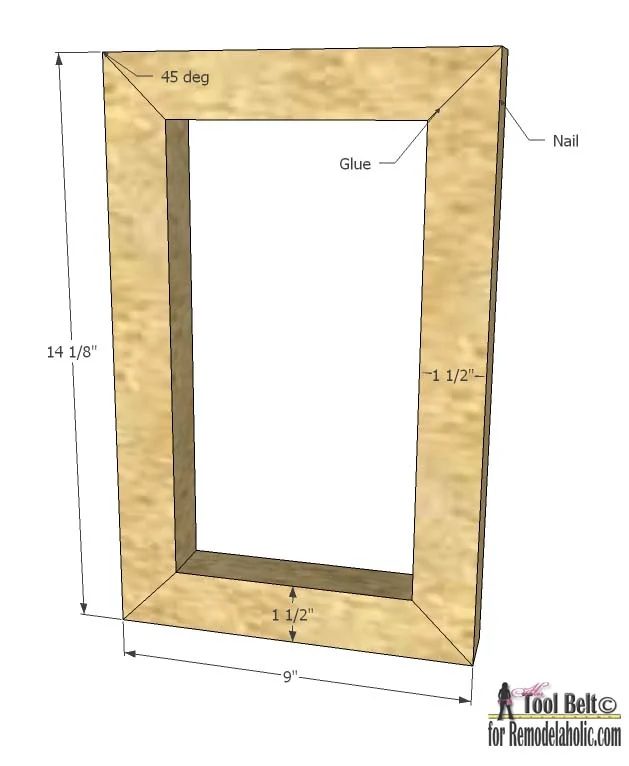

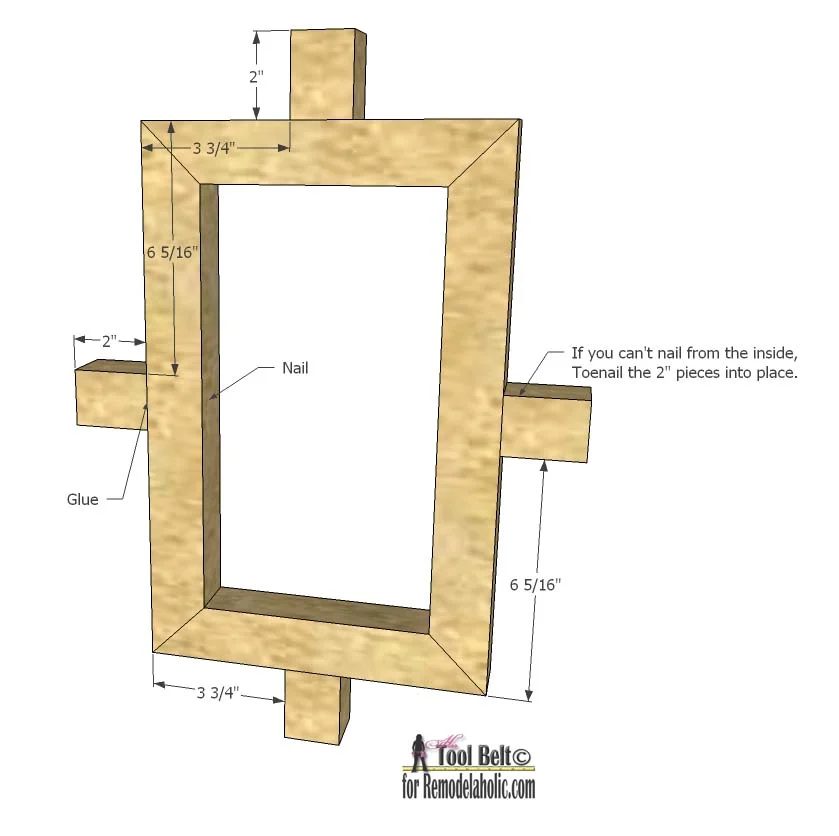

Cut the 80″ pieces and set aside. Cut the 14 1/8″ and 9″ pieces with 45 deg cuts on each end. Assemble 12 inner rectangles, use wood glue and 1 1/2″ brad nails to secure in place. Allow the glue to dry.

Build a unique room divider to add style to your space, free Handmade fretwork screen plans on #Bekob.

Cut the 13″ pieces and the 2″ pieces.

Attach a 2″ piece to the outside center of each rectangle side. Use wood glue and brad nails to secure the pieces into place. You may need to toenail the brad nails if the nail gun doesn’t fit inside the rectangle.

Build a unique room divider to add style to your space, free Handmade fretwork screen plans on #Bekob.

Step 2

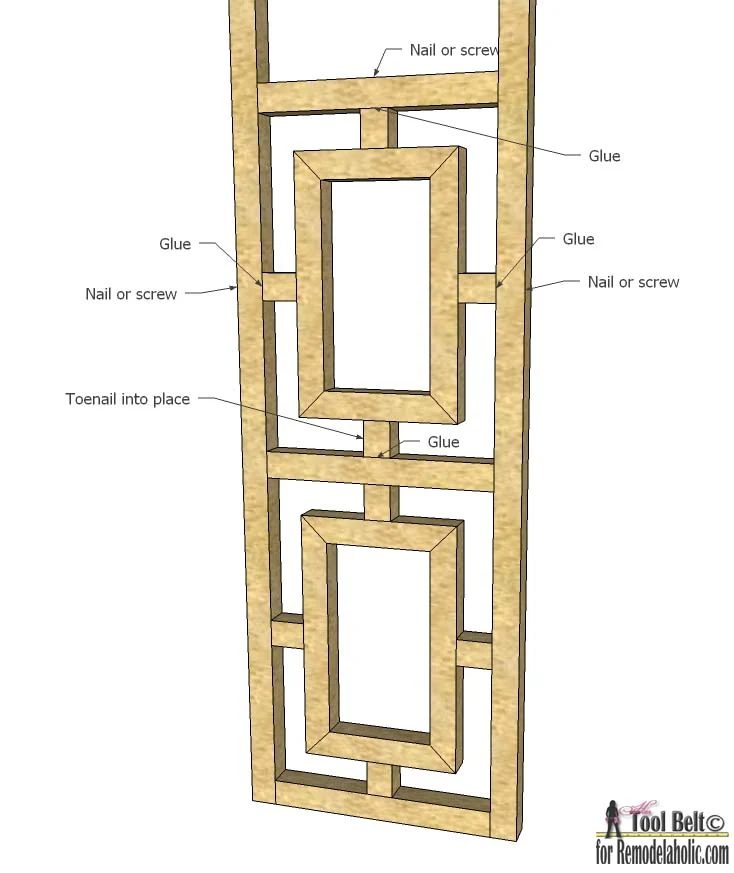

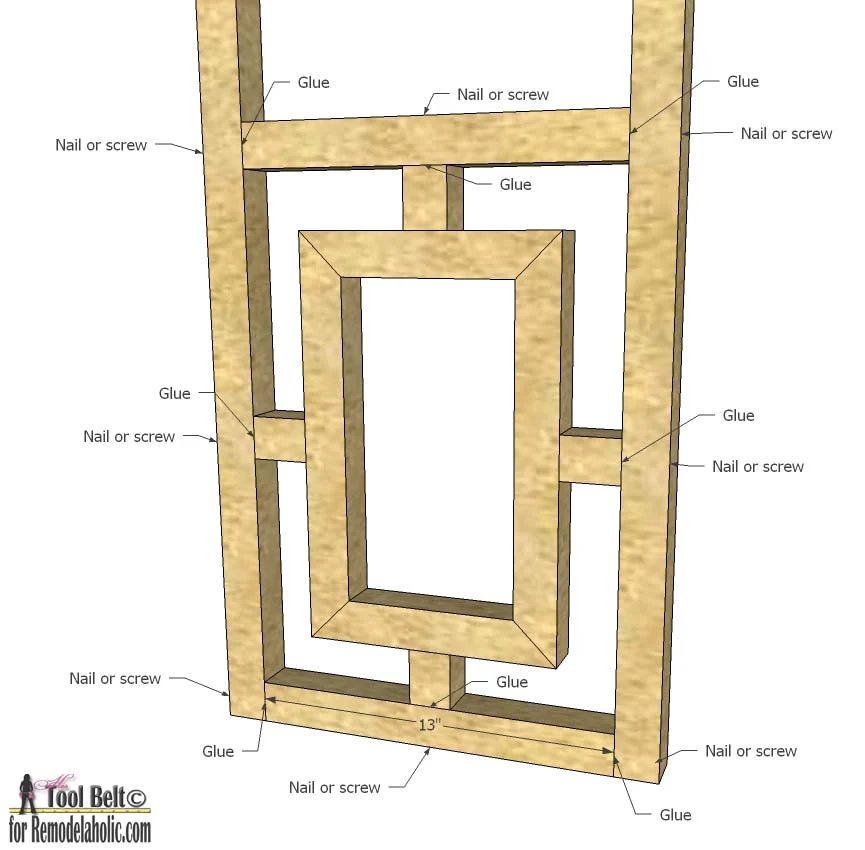

Glue and nail (2″)/screw a 13″ piece flush with the ends of 2 – 80″ pieces. Attach a rectangle to the bottom and side pieces with glue and nails (2″).

Build a unique room divider to add style to your space, free Handmade fretwork screen plans on #Bekob.

Add the next rectangle piece the same way, except the lowest 2″ piece will have to be toe-nailed into place. Repeat for the other rectangles. After the top rectangle installation, if the would isn’t quite 1 1/2″ wide, you may need to trim the 80″ sides to fit.

Build a unique room divider to add style to your space, free Handmade fretwork screen plans on #Bekob.

Repeat step 2 and create 3 total panels.

Step 3

Remove any excess glue, apply wood filler to holes, cracks and blemishes and allow to dry. Sand the wood filler and panels until smooth finishing with 120-150 grit sand paper. Apply paint primer to the panels and allow to dry. If you are painting the screen gold, I suggest using spray paint. I think that will be the easiest way to cover all the fretwork and leave a nice finish. Although I believe the original was gilded.

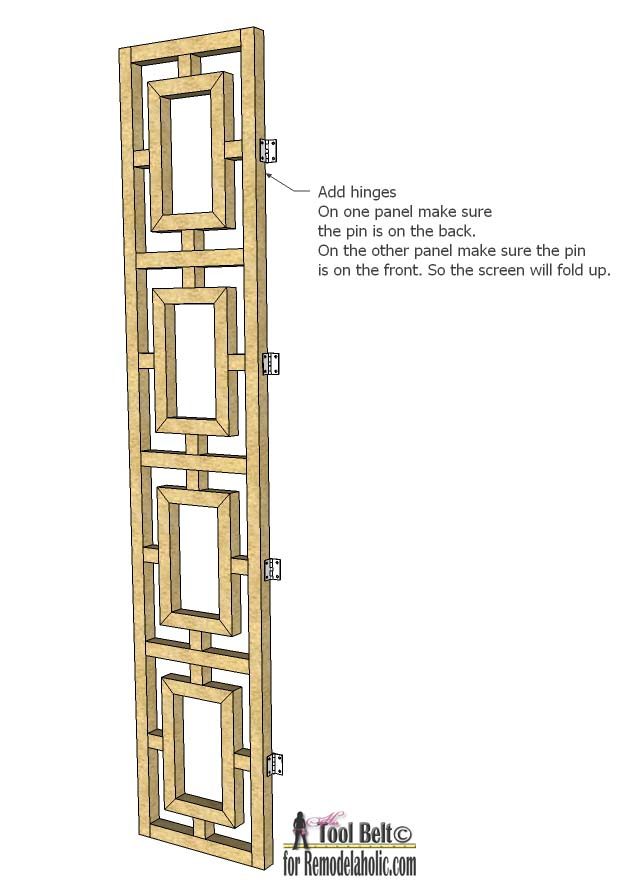

Once the paint is dry, add hinges to connect the panels. On the first panel, place all of the hinge pins on the back of the panel. On the second panel, place all of the hinge pins on the front of the panel, so the screen will fold up.
