DIY Garden Arbor Plans: Your Guide to Building an Arched Trellis

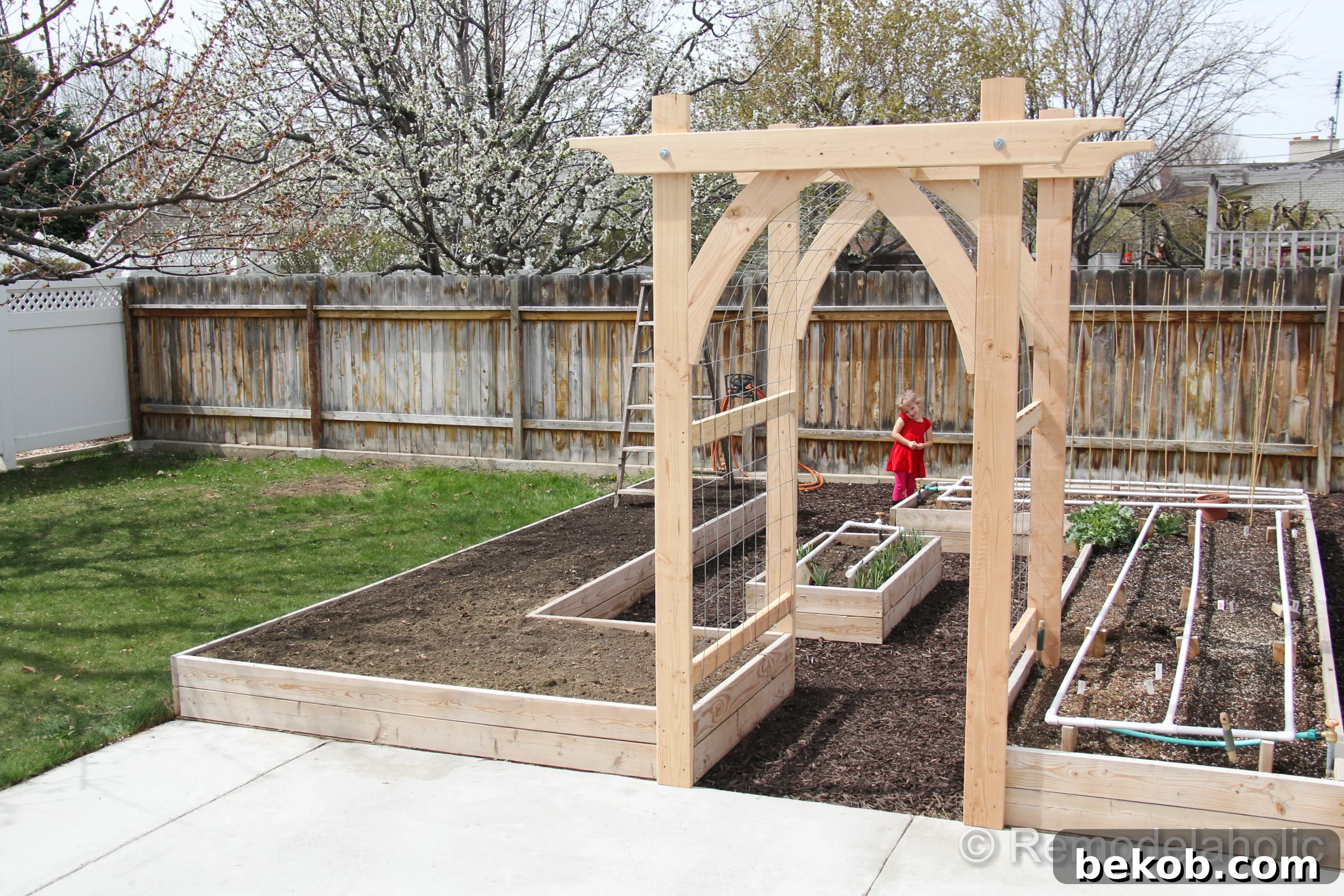

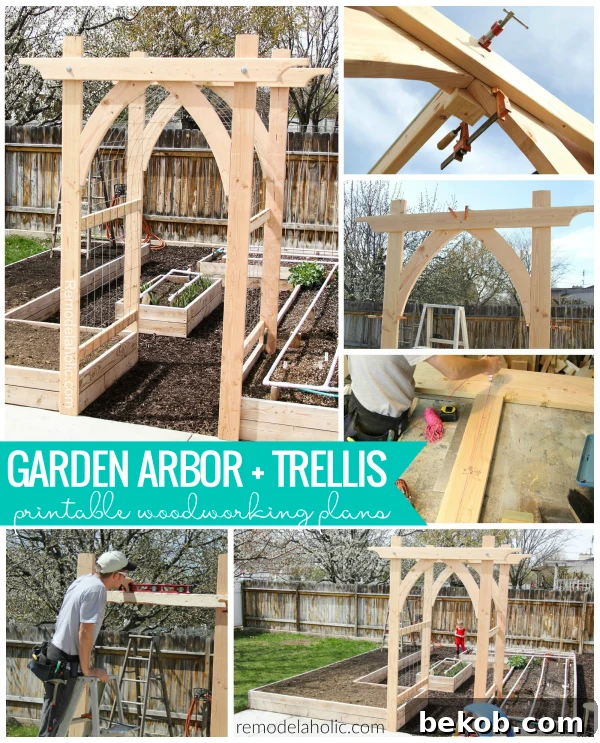

Our comprehensive printable woodworking plan is your ultimate resource for constructing this stunning Gothic Arch garden arbor. It includes everything you need: a full material and cut list, detailed templates for the arch pieces and horizontal support designs, and clear, step-by-step assembly and installation instructions. Plus, we’ve included valuable tips for easily adjusting the arbor’s size to perfectly fit your garden’s dimensions.

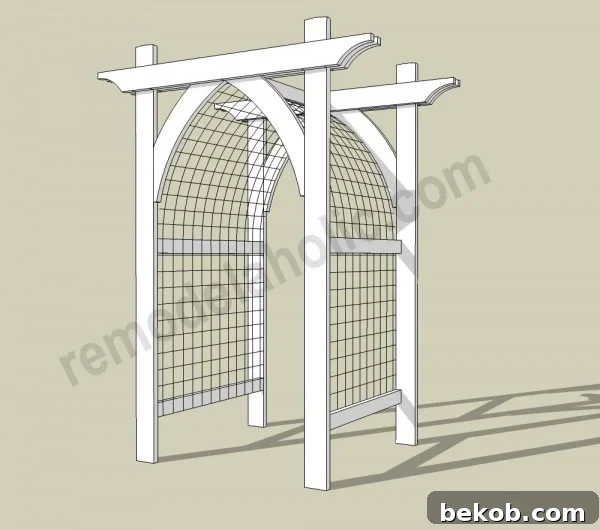

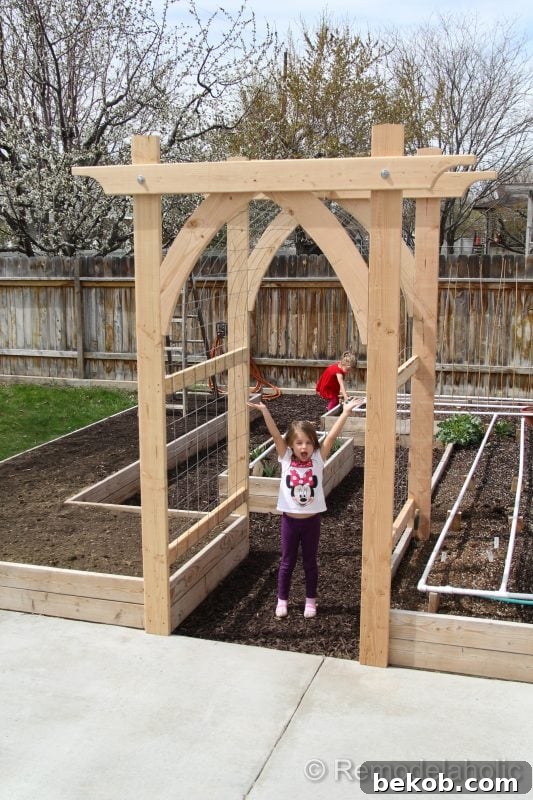

Key Dimensions for Your Arched Trellis

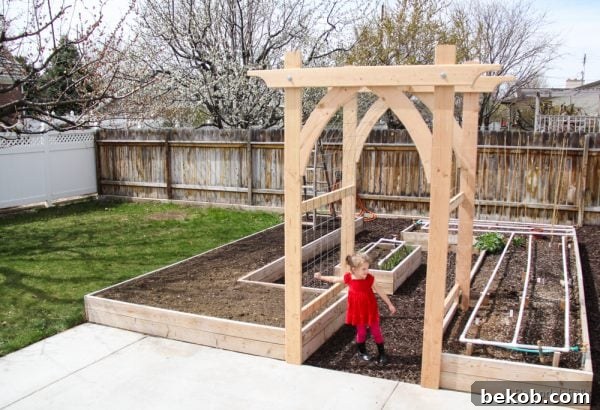

Once completed, following our detailed plans, your finished garden arch will stand impressively at 8 feet 5 1/2 inches (101.5 inches) in total height, with a generous width of 3 feet 6 inches (42 inches) between the supporting posts. This provides ample space for comfortable passage and thriving plant growth.

You might also like: Portable Wood Arbor Wedding Arch Woodworking Plans

Essential Tools for Your DIY Arbor Project

Gathering the right tools before you begin will make your build process smooth and efficient. Here’s what you’ll need:

• Miter Saw: For precise crosscuts and angled cuts on your lumber.
• Circular Saw: Useful for longer, straight cuts, especially on larger pieces.
• Jig Saw: Indispensable for cutting the intricate curves of the arch and other decorative details.
• Drill: For pre-drilling holes and driving screws.
• Orbital Sander: To achieve smooth finishes and prepare wood for staining or sealing.
• 1/2″ Drill Bit: For creating holes for bolts.
• Measuring Tape: Essential for accurate measurements throughout the project.
• Pocket Hole Jig: (We highly recommend the Kreg Jig!) For strong, concealed joints.
• Pencil: For marking cuts and templates.
• Bar Clamps: Crucial for holding pieces securely during assembly, ensuring accurate and strong connections.
• L Square: For marking perfectly square lines, especially important for joining sections.
• Printable Woodworking Plan: Your comprehensive guide with all the step-by-step instructions.

Materials You’ll Need for Construction

Selecting the right lumber and hardware is key to a durable, long-lasting arbor. For outdoor projects, redwood or cedar are highly recommended due to their natural resistance to rot and insects.

• (4) 2×6 – 10′ lumber pieces
• (4) 2×6 – 8′ lumber pieces
• (2) 2×12 – 8′ lumber pieces (for the main arch curves)
• (2) 2×4 – 4′ lumber pieces
• (1) 2×4 – 4′ lumber piece
• (2) 4’x8′ sheets of 4″ o.c. concrete reinforcement mesh (for the trellis panels)
• (4) 1/2″ – 6″ galvanized bolts
• (8) 1/2″ galvanized washers
• (4) 1/2″ galvanized nuts
• (1) box 2 1/2″ deck screws (weather-resistant for outdoor use)
• (4) 1 1/2″ pocket screws (specifically for connecting the top brace)
• (15) 12″ plastic zip ties (or durable staples) for securing the mesh trellis

Bundle and Save 15% with the 2x Garden Arbor Woodworking Plan Bundle

Pro Tips for a Flawless DIY Garden Arbor Build

As with all woodworking endeavors, taking the time to thoroughly read the entire plan before making your first cut is paramount. This simple step can save you countless hours, prevent mistakes, and eliminate unnecessary trips to the lumber store!

1. Seamless Integration: Designing Your Arbor to Fit Your Yard

When introducing a new structure to an established backyard, echoing existing design elements can create a professional, cohesive look. This arbor offers fantastic opportunities for personalization. For instance, we matched the decorative curve on our arbor’s horizontal supports to a detail already present on the stairs we renovated last year. We simply created a cardboard template to trace this curve onto the new pieces, ensuring a harmonious flow with our existing landscape.

Rest assured, this design template is conveniently included in the printable woodworking plan! However, don’t hesitate to customize this element. Feel free to adapt the curve, add a different decorative edge, or keep it simple and straight to perfectly suit your garden’s unique aesthetic.

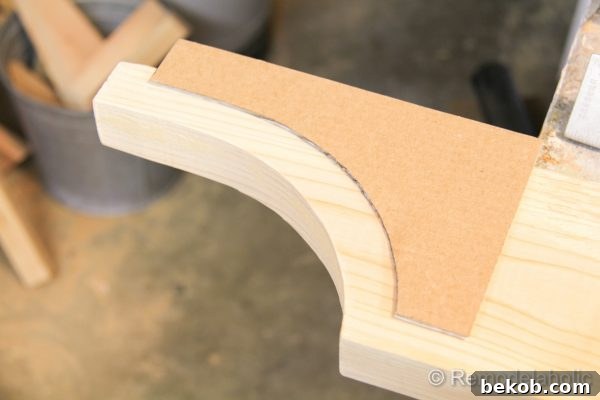

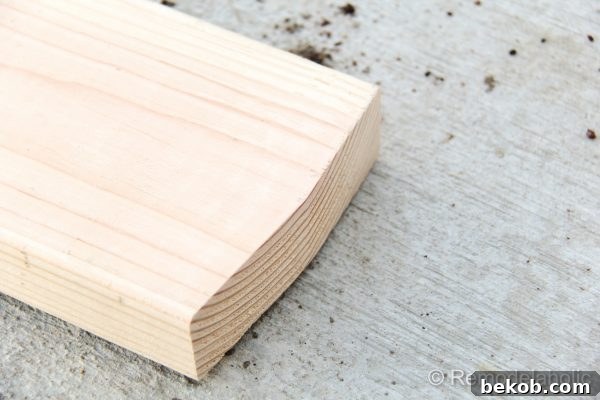

Matching existing curve detail	Cutting out curve detail on horizontal supports

2. Building an Arbor That Lasts: Longevity Secrets

Wood rot is a common adversary for outdoor woodworking projects. To significantly extend the life of your garden arbor, strategic material choices and finishing techniques are essential. Opting for naturally rot-resistant woods like redwood (which we utilized for our wedding arbor) or cedar will provide a strong foundation. Additionally, a high-quality exterior stain or finish is crucial; it acts as a protective barrier, reducing warping, aging, and decay caused by exposure to the elements.

Here’s a clever tip for maximum durability: angle the tops of your arbor posts. This simple modification, even a subtle 5-degree angle as we used for this Gothic arch arbor, prevents water from pooling on the post tops. Whether it’s rainwater or sprinkler runoff, standing water is a primary contributor to wood rot. By allowing water to easily drain off, you’ll dramatically increase your arbor’s lifespan and minimize maintenance.

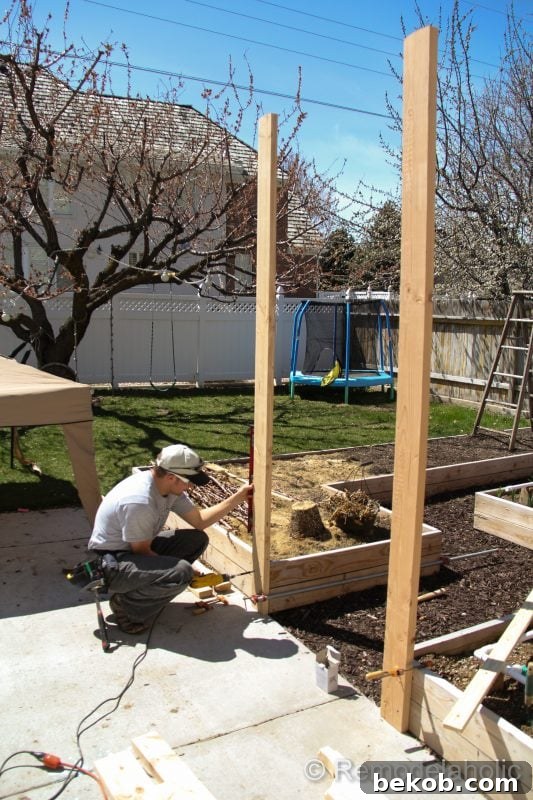

3. Foundation First: Anchoring and Leveling Your Arbor

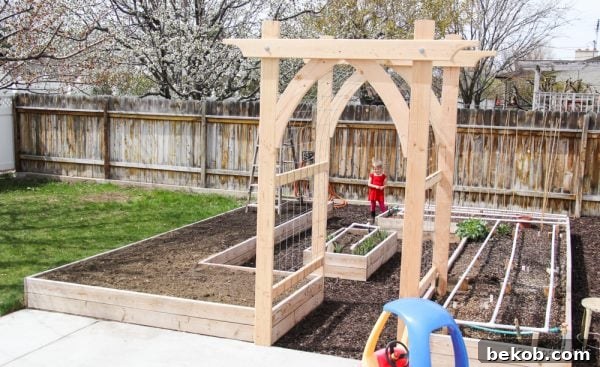

The stability of your garden arbor is paramount for safety and longevity. We strategically installed our arbor over the pathway leading into our raised garden beds, directly off the patio. This clever placement allowed us to anchor the arbor directly to the sturdy raised garden beds, eliminating the need for separate concrete footings.

Your anchoring method will depend entirely on your chosen installation site. Common options include bolting it to an existing patio, setting posts into concrete footings in the ground, securing it to a fence, or utilizing garden boxes as we did. Regardless of your method, proper anchoring is non-negotiable. It ensures your arbor remains stable against strong winds and prevents it from being accidentally knocked over, especially by curious climbing children.

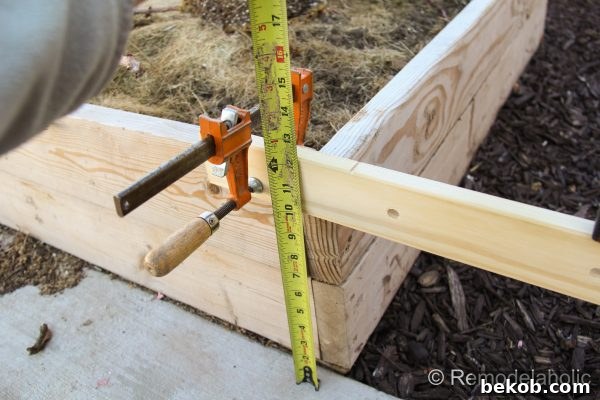

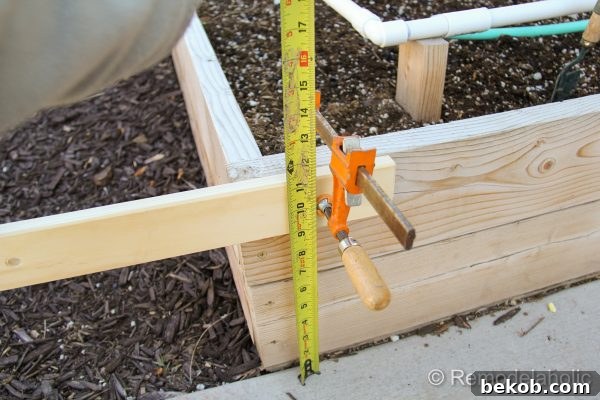

Before making final cuts to your corner posts, it’s critical to check for level. Our patio, for example, has a subtle 2% grade, which meant one side of the arbor needed to be an inch taller to ensure a perfectly level top. To easily check for this, span a straight board across your intended arbor width and place a level on top. Measure the difference from the top of the leveled board to the ground on each side. Adjust the length of your posts accordingly before cutting and angling the tops. Once cut, securely screw the posts to your chosen anchor points (garden boxes, patio, etc.).

4. Mastering the Arch: Cutting Techniques for Graceful Curves

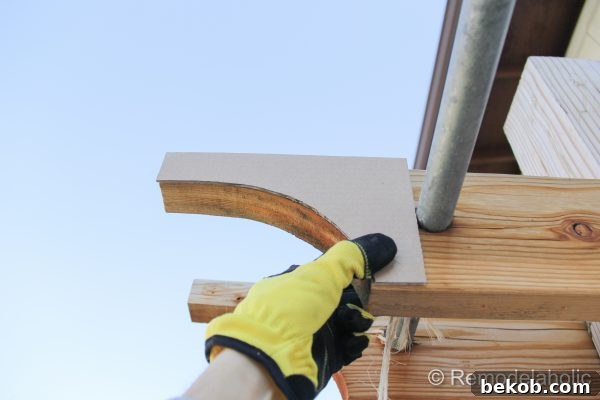

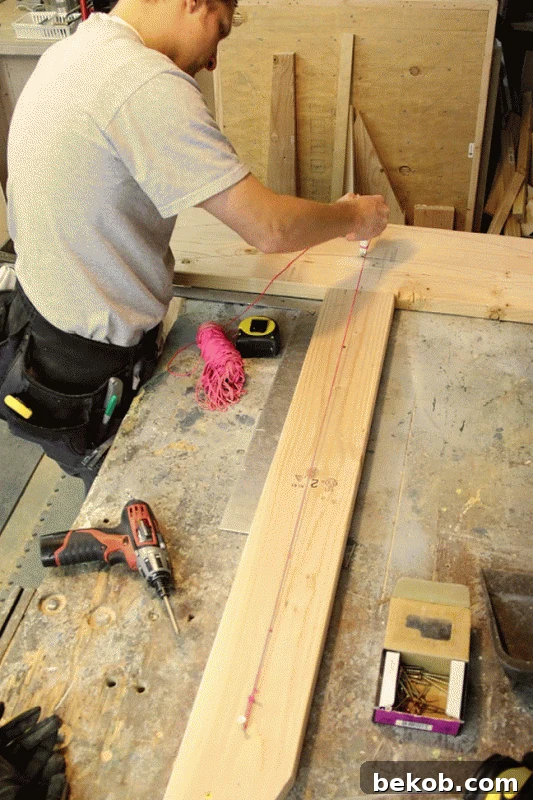

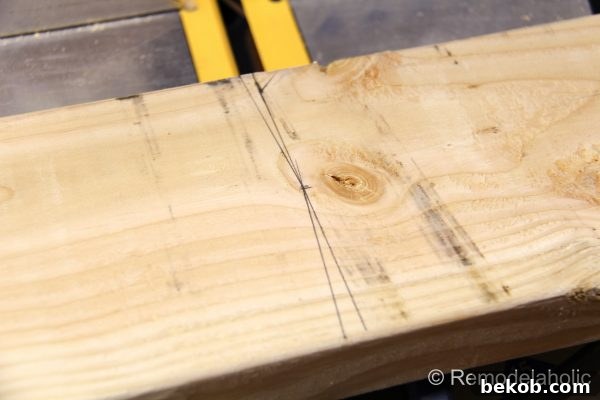

The distinctive Gothic arch is a highlight of this design. We’ve cleverly engineered it to be cut in two symmetrical pieces that seamlessly meet at the apex. To accurately draw these beautiful curves, you’ll employ a classic, reliable method: the “old-fashioned compass.” This involves a simple setup using a screw inserted into a scrap piece of wood, a length of string, and a pencil. Once your arch is drawn, an L square will help you precisely mark the straight end lines where the arches will connect in the middle and attach to the side posts.

All the intricate details for this process, including a full-size printable template, are provided within the printable woodworking plan. Furthermore, we’ve included essential tips for adjusting the arch’s dimensions, ensuring a perfect fit whether your walkway is wider or narrower than our design.

5. Smooth Sailing: Expert Tips for Easy Assembly

Once your arch pieces are meticulously cut and sanded (and stained, if you choose), the assembly process is quite straightforward. Begin by assembling the front section, then the back. Finally, use the horizontal supports to connect the front and back frames, creating a robust, three-dimensional structure. The wire plant trellis can then be easily attached. Our printable woodworking plan contains all the comprehensive, step-by-step instructions, but here are some of our favorite assembly tips:

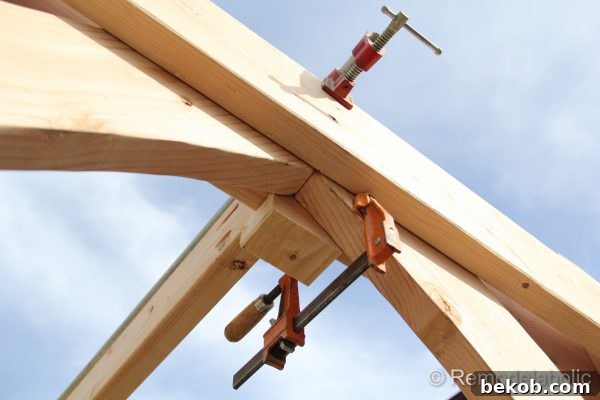

Clamps will be your absolute best friend! Investing in a few high-quality bar clamps will dramatically simplify the assembly of this wooden arch and countless other projects. They are invaluable for holding pieces securely in place, ensuring precise alignment and strong joints, especially when sandwiching boards together and aiming to conceal as many screws as possible.

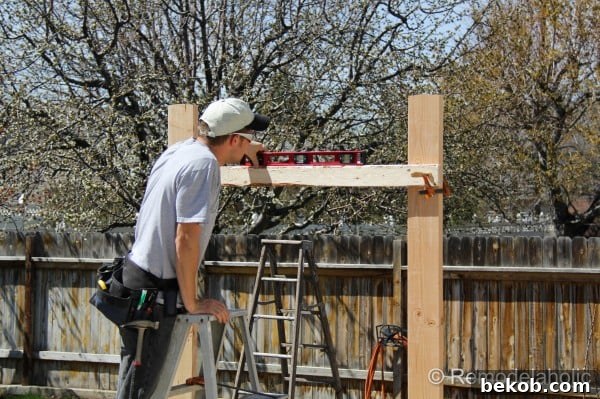

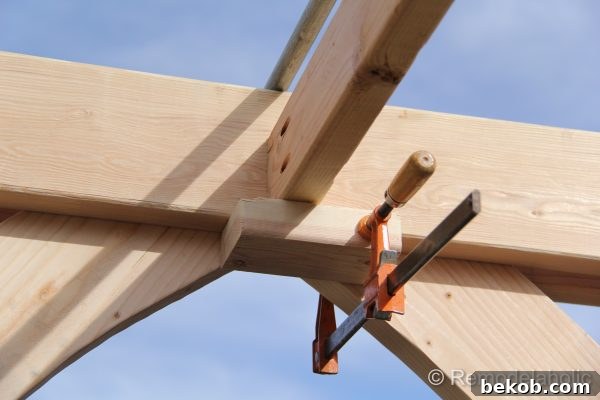

To effortlessly install an arch horizontal support: First, accurately measure and mark its intended location. Then, clamp and level a spare 2×4 precisely into position. This temporary support will perfectly hold your horizontal piece while you secure it, ensuring accurate placement.

For easy installation of a top cross brace: Similarly, clamp a small block of wood directly beneath where the brace will sit. This provides firm support as you screw the brace into place, preventing any slippage or misalignment.

What are the final dimensions of the completed arbor?

Upon completing your project using our woodworking plans, the finished garden arbor will stand tall at 8 feet 5 1/2 inches (101.5 inches) in total height. It will feature a comfortable passage width of 3 feet 6 inches (42 inches) between the posts, creating an inviting entrance or focal point in your garden.

How to Adjust the Width and Depth of Your Garden Arbor

Flexibility is built into our design! To customize the width of the garden arch for a space wider or narrower than our standard dimensions, simply adjust the width of each arch piece to be precisely half of your desired opening. For your convenience, a full-sized printable arch template is included in the printable woodworking plan, along with clear instructions and tips for easily adding or removing width from the arch using the template.

Moreover, the depth of the integrated garden trellis can also be readily adjusted if your specific needs or plant varieties require a different dimension.

What are your thoughts on this beautiful and functional garden addition? We would be thrilled for any pins or shares to spread the inspiration!

And when you build one of your own, please don’t hesitate to send us some pictures of your fantastic creation!

Real-World Inspiration: Arbors Built by Our Community

We absolutely love seeing how our readers adapt and build these arbors in their own unique spaces! The creativity and craftsmanship are truly inspiring.

Please note: To respect the creators, kindly do not re-post any images from this section on other sites. Thank you.

Erin’s Raised Garden Box Enclosure Trellis & Gate

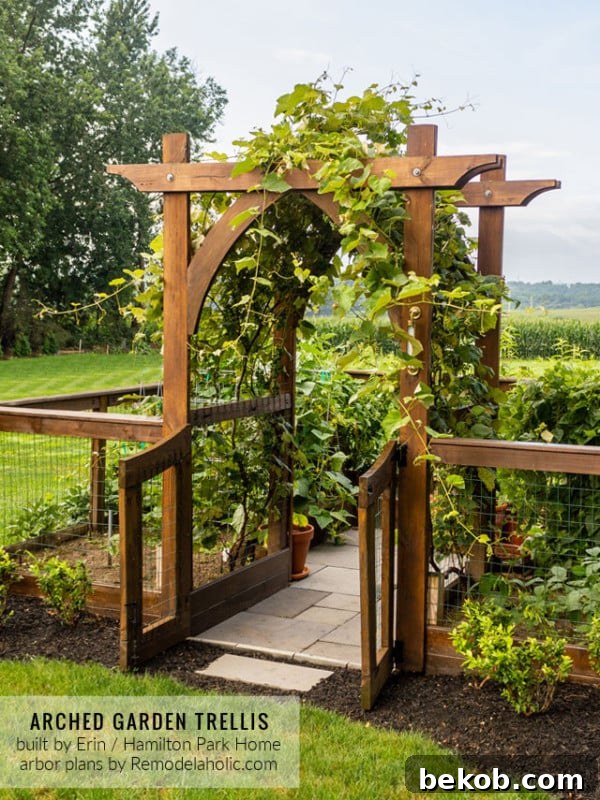

Erin at Hamilton Park Home took our arched trellis plans and ingeniously integrated them into a gorgeous enclosure fence and gate for her raised garden beds. She shared, “The arched arbor is functional as it is beautiful—It’s perfect for growing grapes!” Her project beautifully demonstrates how this arbor can serve as a stunning, grape-vine-covered entrance. Discover more details about her amazing garden here.

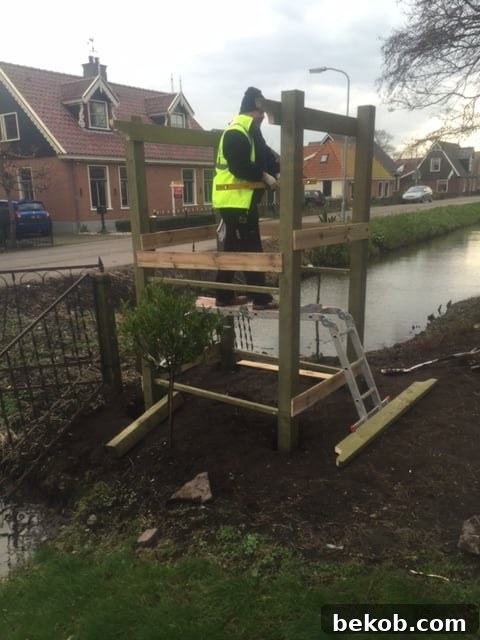

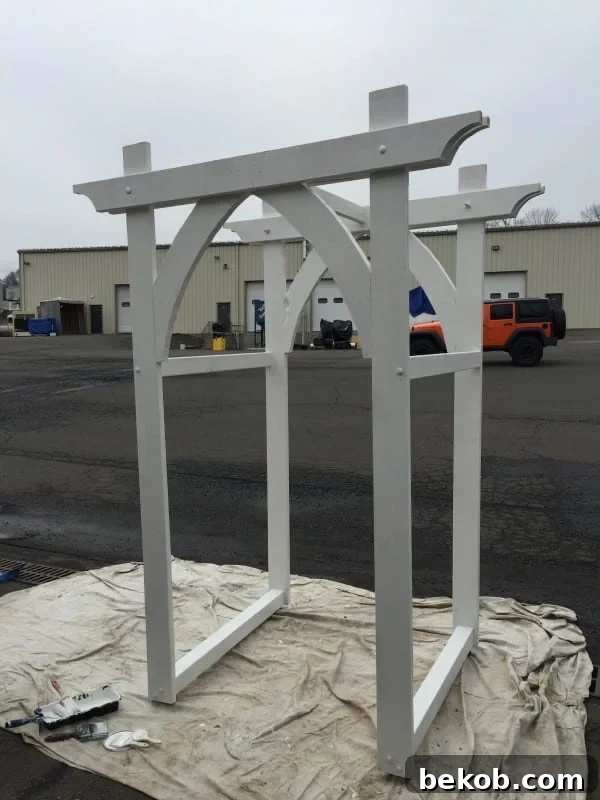

Rae’s Gothic Arch Gate: A Custom Adaptation

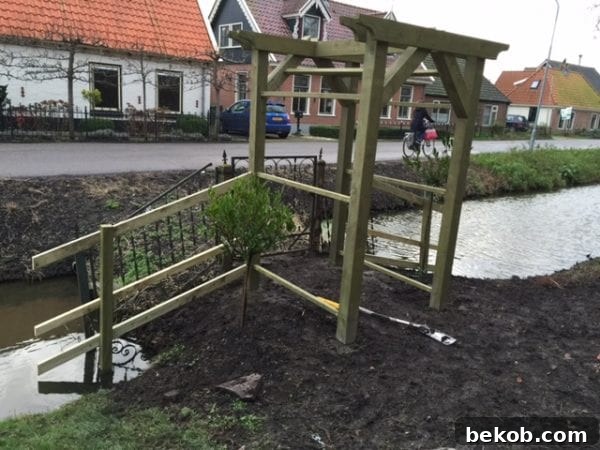

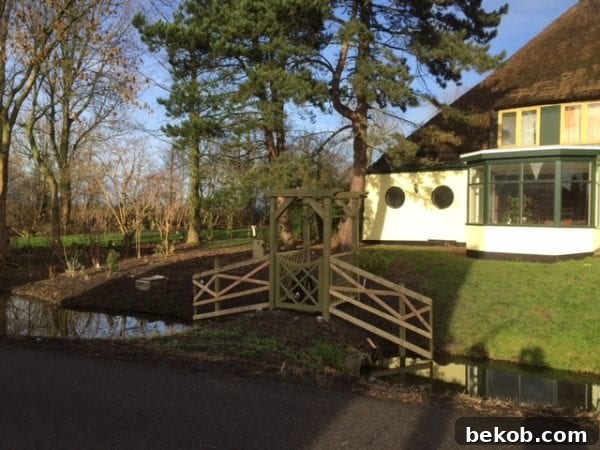

Rae shared wonderful pictures of the new gate she and her husband built, drawing inspiration from our Gothic arch design. They skillfully adapted the plans to fit their specific space, even converting measurements to metric, and the result is truly impressive! This showcases the adaptability of our design. See more of their fantastic project over at Rae’s Nomady.

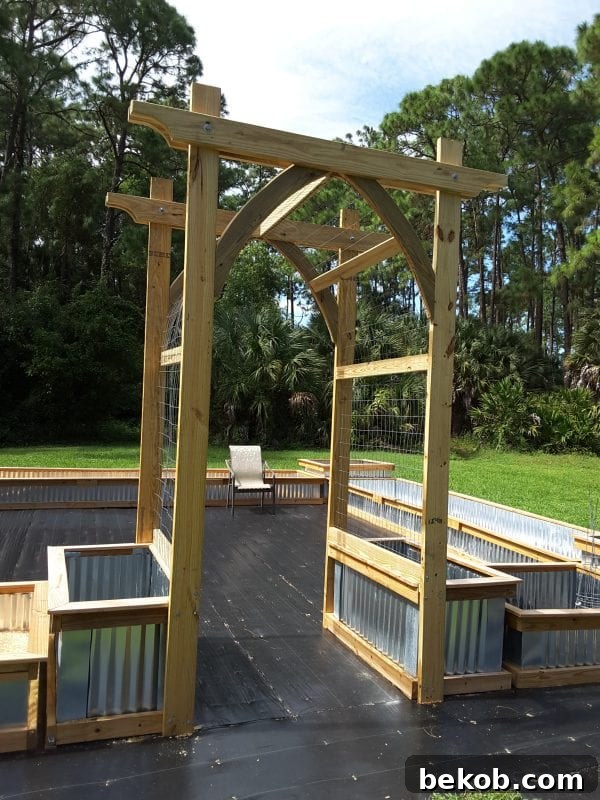

Shelly’s Grand Garden Arbor with Metal and Wood Raised Beds

Shelly shared these fantastic photos of her completed arbor, which she proudly calls the “crowning feature” of her expansive 26’x26′ raised bed garden. What a truly magnificent garden, Shelly! Thank you for allowing us to share your inspiring work.

Shelly recounted her build:

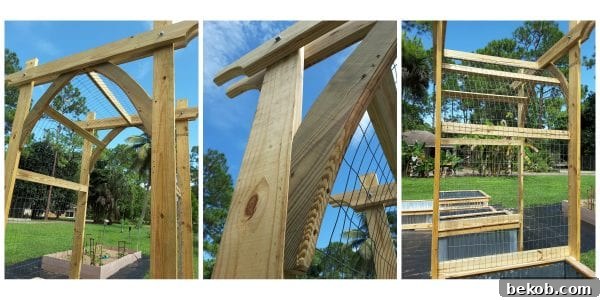

The arbor we made ended up being a whopping 10′ tall! Because I want to grow passion fruit on this arbor, I wanted it really tall. Also, I routed the edges of the arch and the uppermost horizontal supports. The arch is so tall that you can hardly see this detail but I know it’s there and it really put a nice finished detail on the arbor.

This arbor is the crowning feature of my new 26′ x 26′ raised bed garden, which is still in production at the moment, but soil will soon be delivered and seeds will be planted (we are subtropical zone 10a).

Chris’s Portable Stage Arch

Chris’s project is a brilliant example of adapting our plans for unique needs! He utilized our tutorial to construct a stunning stage piece for a school play. Notably, Chris added 4x4s across the bottom and wheels, making this grand arch fully portable. This adaptation showcases the versatility of the design beyond a traditional garden setting. Thank you, Chris, for sharing your innovative use!

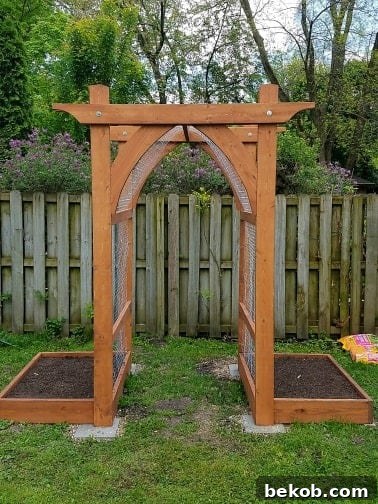

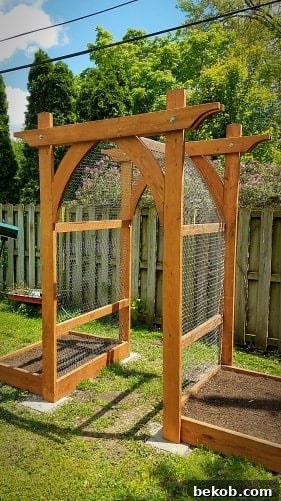

Mark’s Garden Arbor & Trellis with Paver Footings

Mark beautifully recreated this garden arbor, attaching it to two smaller raised beds and ingeniously using cement pavers as sturdy footings. The final result is simply lovely, and we’re delighted to hear he is “very happy with the results.” Mark’s project demonstrates another excellent way to integrate the arbor into various garden setups.

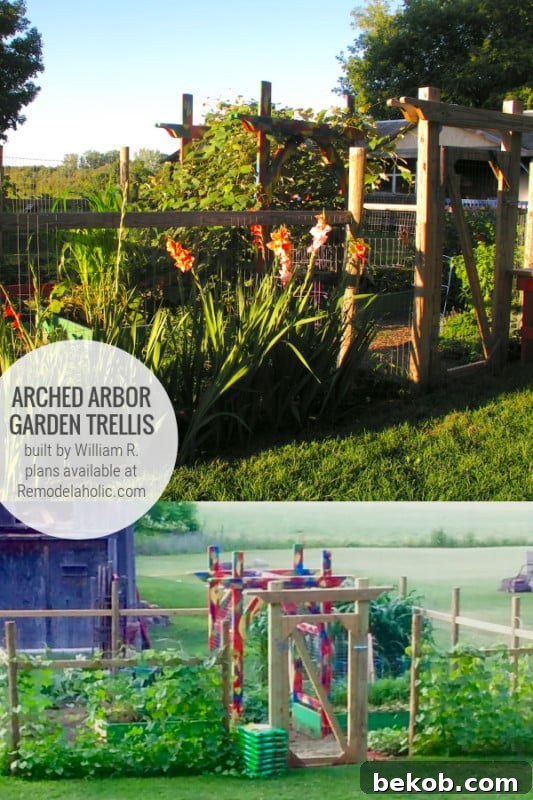

William’s Garden Entry Tunnel Trellis: A Grape Vine Haven

William shared these fantastic photos of his garden area, complete with a magnificent Gothic arch trellis that now serves as a lush tunnel for his grape vines! He enthused, “Get more compliments about this arbor. Concord grape vines make it a tunnel entry to the garden. Just love it.” This is a perfect example of how the arbor can create a stunning, productive entryway to any garden.
