My blog focuses on thrifty Handmade projects, straightforward crafts and happy household tips. And sometimes I tackle a Handmade project because I have no other choice. The project I am sharing with you today is one of those projects. You see, my husband and I wanted a high quality, stylish screen door for our contemporary home and we just could not find one that met our needs. If we found one that we liked the look of, it was too flimsy. And if it was sturdy, it was ugly. So, we decided to make our own and we just love how it turned out.
Our quest for a new screen door started when we began sprucing up the front entry to our house. Currently, our front porch is very dreary and run down. It’s not hard to find inspiration for the look we want to achieve. We love the options shared in Top 10 options for a Welcoming Porch and Home Sweet Home on a modest-cost: Porches Patios and Entryways. So, we decided to get to work and our Handmade screen door was the first project we tackled.
This is a project of intermediate difficulty and requires that you have some basic knowledge of woodworking terms and cuts. But, if you have some basic Handmade projects under your belt already, I am confident you can tackle this one.
How to Build a Handmade Screen Door
Materials and Tools We Used:
- (3) 2x6x8 {that means a 2×6 that is 8 feet long}
- (1) 2x8x8
- Screening
- Screen molding
- Wood putty or spackle
- Sandpaper
- Staple gun and staples
- Table saw
- Circular saw
- Router {if rounded edges are desired}
- Kreg Jig and screws
- Kreg wood plugs
- Utility Knife
Steps:
1) First, rip 1/4 of an inch from the edges of all of your wood down using your table saw. This is just to ensure that you have perfectly square and flat edges to work with.

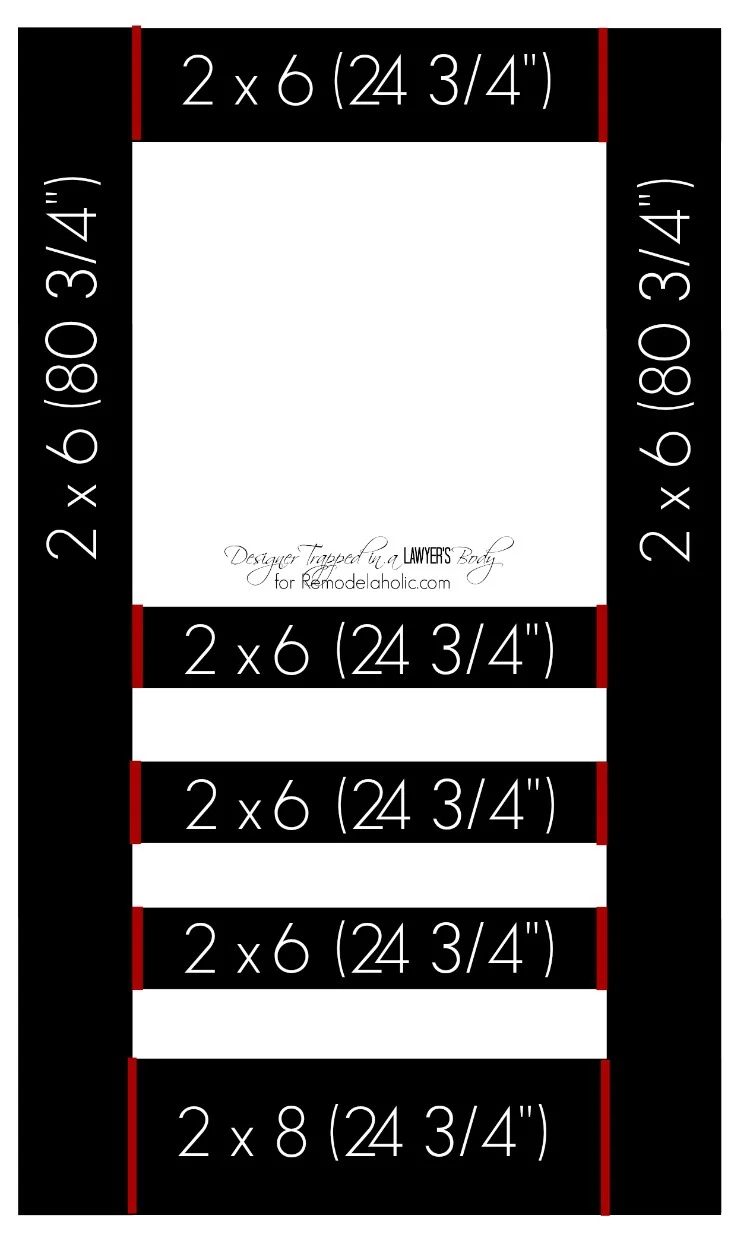

2) Cut your wood pieces to length with a circular saw or miter saw. Your dimensions will depend upon the dimensions of the doorway you are using the screen door in. Our door was 35 1/4 x 80 3/4, which is pretty standard. Below you can see a diagram of the door {NOT to scale}, which shows where we used the various sizes of wood. In parentheses, I note the cut lengths. The red lines mark where the wood pieces join together, so as you will see, all the cuts are straight.
* In order to reduce cut waste, after cutting our 24 3/4 inch length of 2 x 8 for the bottom of the door, we ripped the remaining 2 x 8 to the same width as the 2 x 6 pieces.

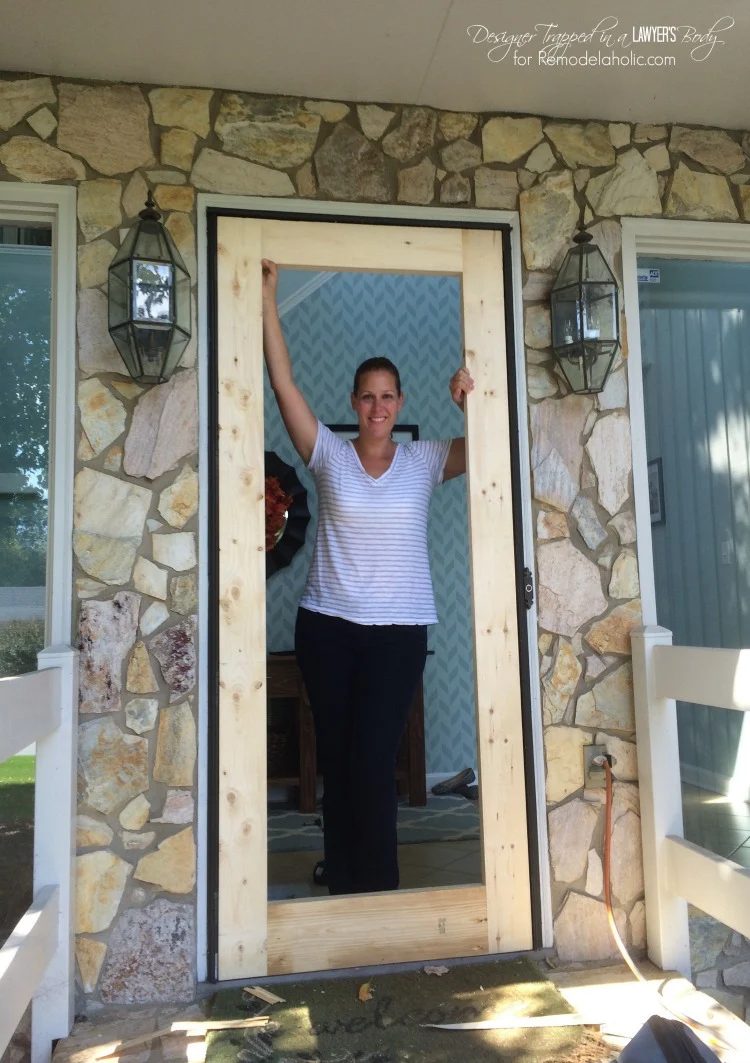

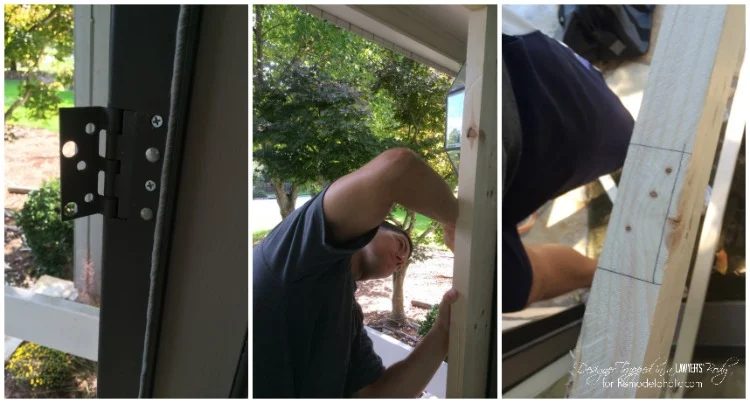

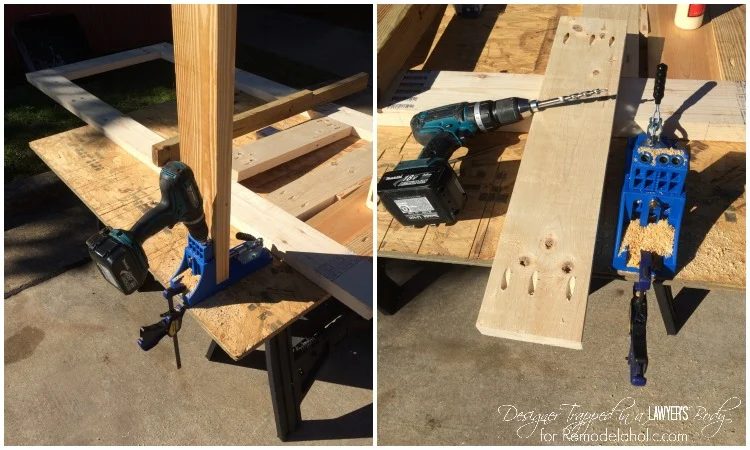

3) After all of your pieces are cut, use your Kreg jig to join your pieces together. Assemble the outer frame of the door first. Once your outer frame is assembled, we recommend that you hold it up in the door frame to make sure that it fits.
Ours was about a quarter inch too long, so we simply trimmed some off the bottom. Since we were simply replacing an existing screen door, we also took this time to mark where the hinges needed to be attached.
4) Once the frame is assembled, use your Kreg jig to attach the horizontal pieces to the door frame.

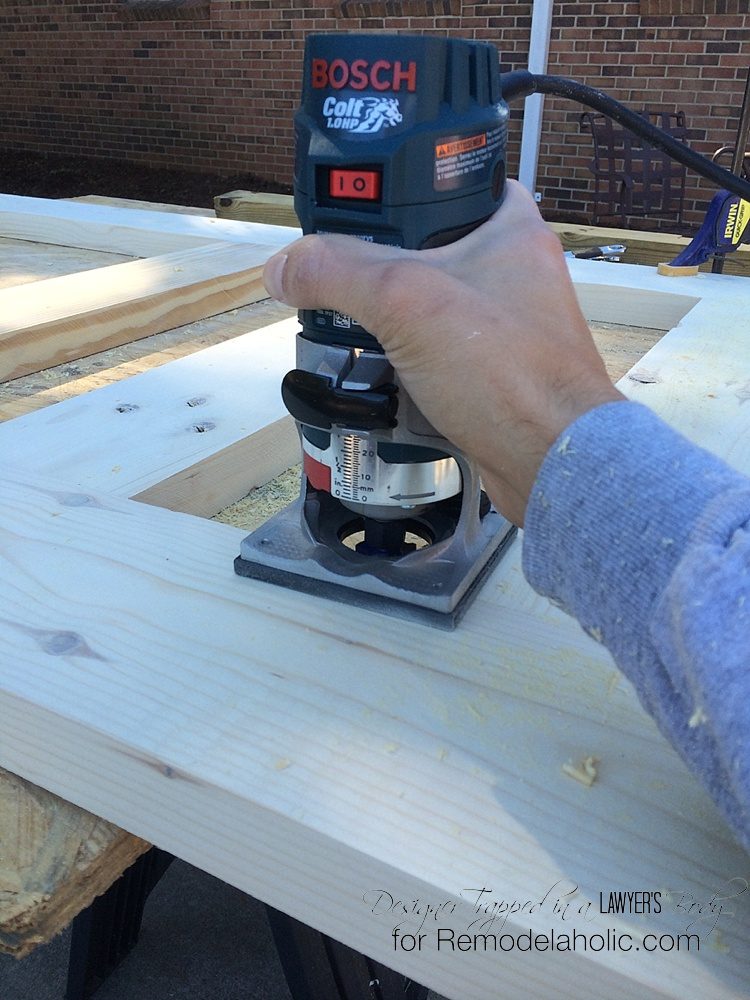

5) We then used a small router bit to slightly round all the outer edges of the front of the door. This is optional.

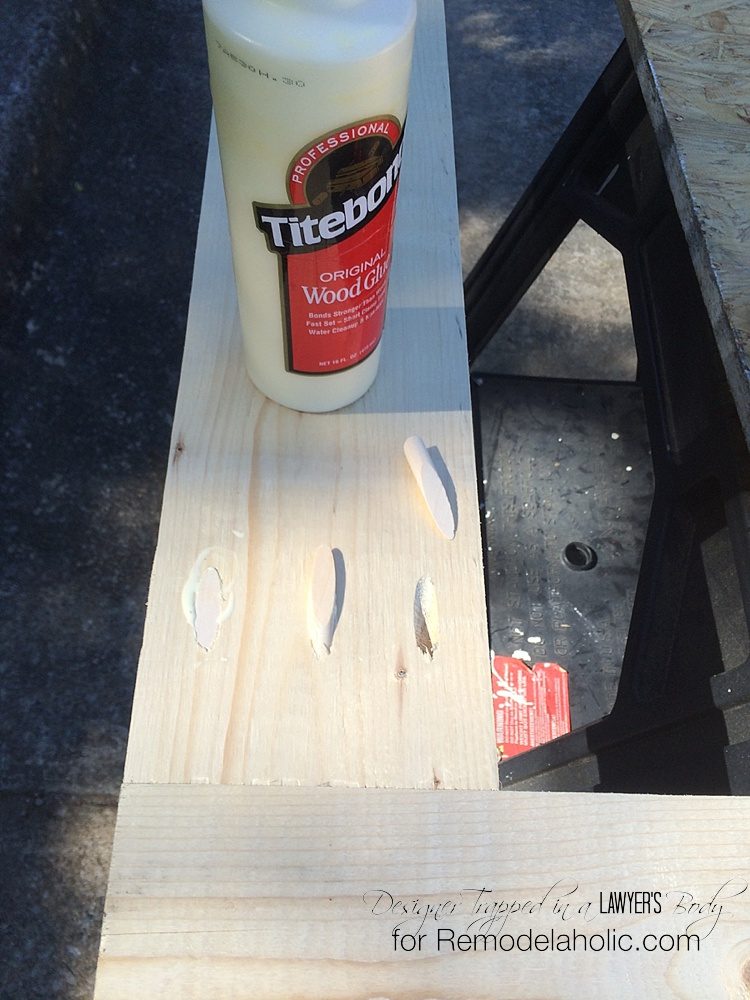

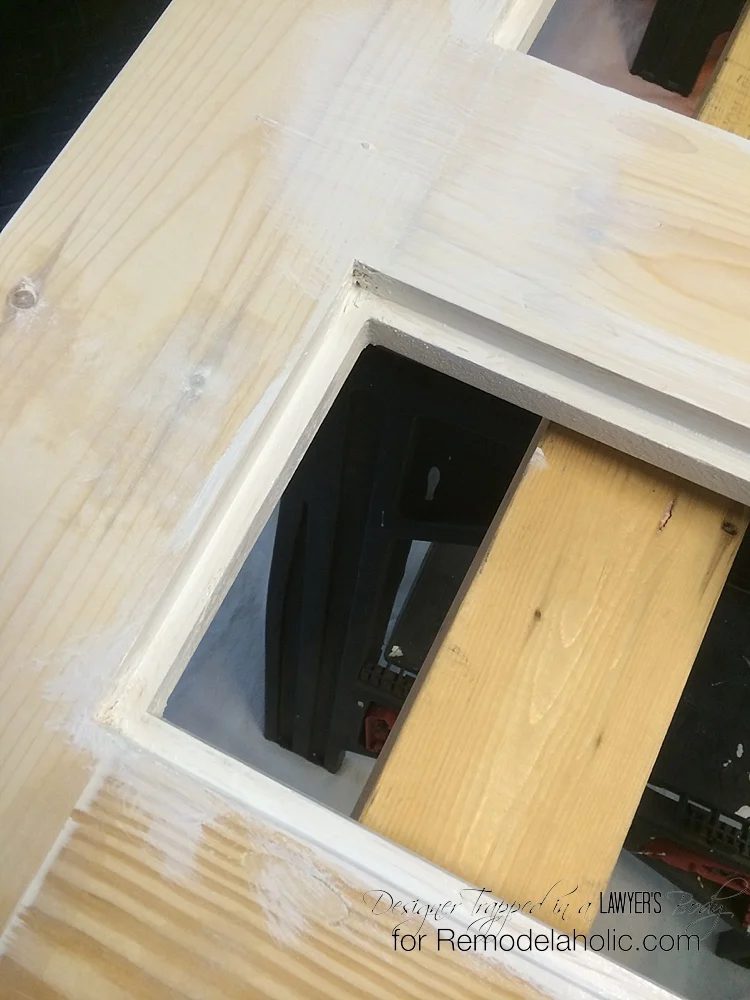

6) Use wood putty or spackle to fill in any gaps between the joints. Then use your Kreg wood plugs to fill the holes left by your screws. After everything is dry, sand it down until it is smooth.
7) Next, you will need to rabbet out a groove with your router on the back side of the door for the screening to attach to. We use a 3/8 inch routing bit for to make our rabbet 1/2 inch deep. However, if we had it to do over again, we would have routed it out to a depth of 1/4 inch so that we could use ready-made 1/4 x 3/4 inch screen molding that is sold at home improvement stores and could have skipped making our own. We would highly recommend that you rabbet out a 1/4 inch depth to save yourselves some time. Bear in mind that you will need to use a chisel to square the corners up after you route out the rabbet area.
8) Paint the front side of the door. It’s easier to do this now so you don’t have to worry about the screening while you paint it. We waited to paint the back of the door until after we attached the screen molding, as described in step 10.

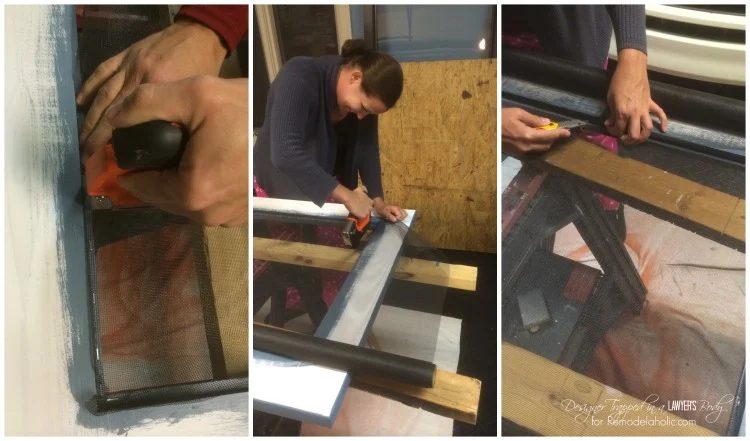

9) Now you are ready to attach your screening to the back side of the door. Simply lay your screening out on the area to be screened and attach it with your staple gun in the rabbet grove. You want to pull the screen taut, but not too tight, or it may rip. It’s best to have two people for this part of the project. After you staple it in place, trim off the excess with a utility knife.

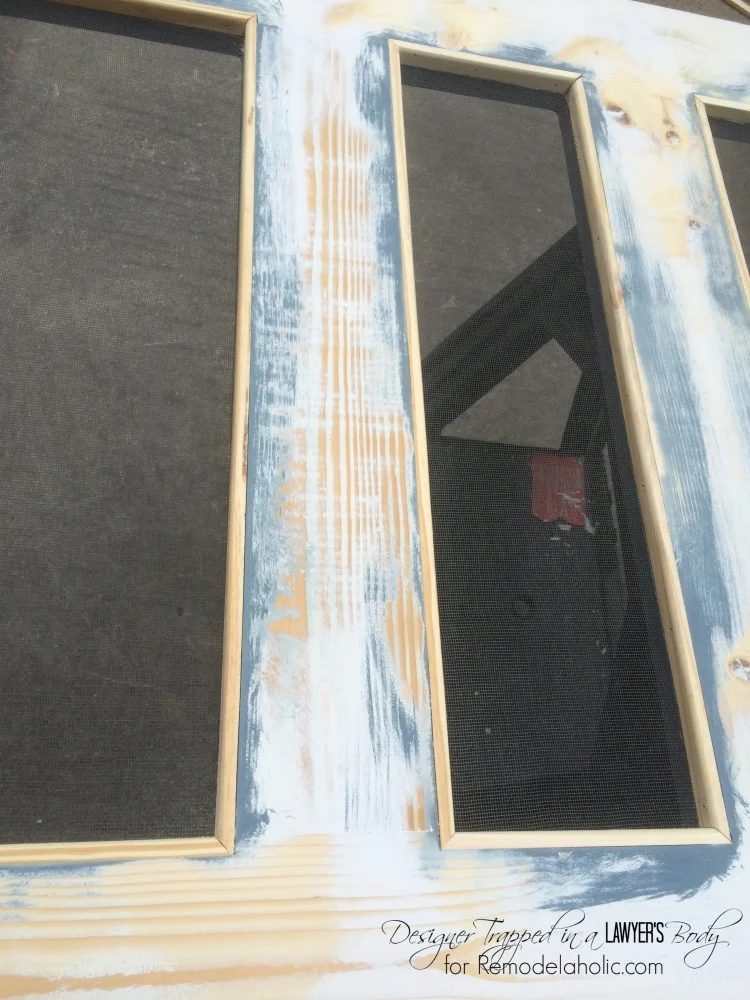

10) After your screening is attached, you are ready to cut and attach the trim pieces to cover the ugly staples in the screening. We made our own trim pieces to fit the area, but see my comments in step 7. We aren’t going to even tell you how to do this because it’s not worth the extra work–trust us! You should purchase ready-made screen molding at your home improvement store. It is generally 1/4 x 3/4 inch and should work perfectly.

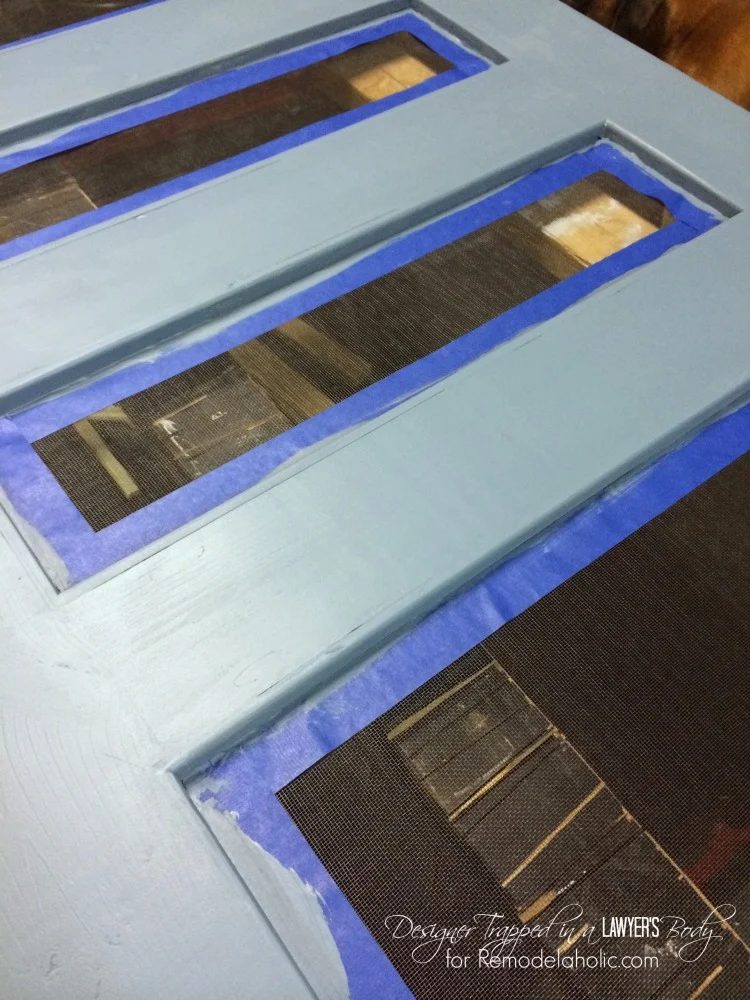

11) Once your trim is attached, you are ready to paint the back side of the door. Be sure to tape off your screening with painter’s tape, so that you do not inadvertently get paint on it.

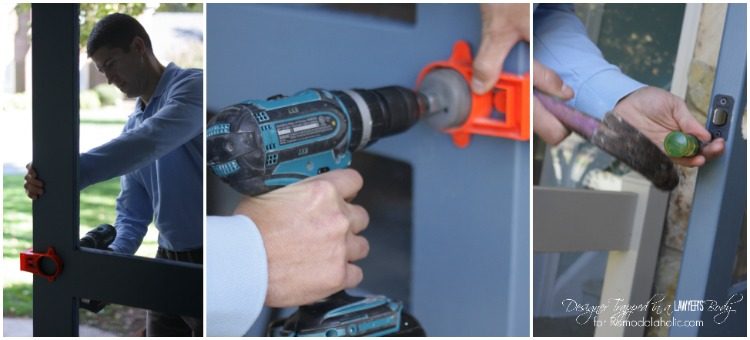

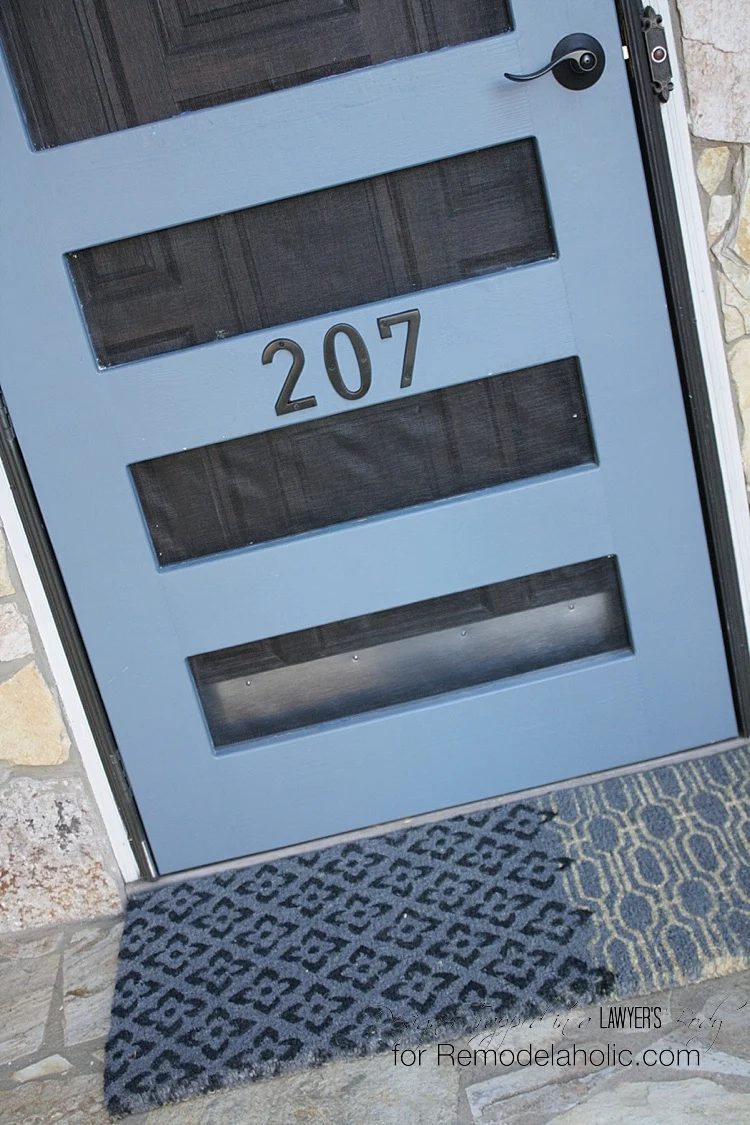

12) Next, attach your door handle and address numbers, if desired. We used a door knob installation kit that we already had–it makes installation so direct!

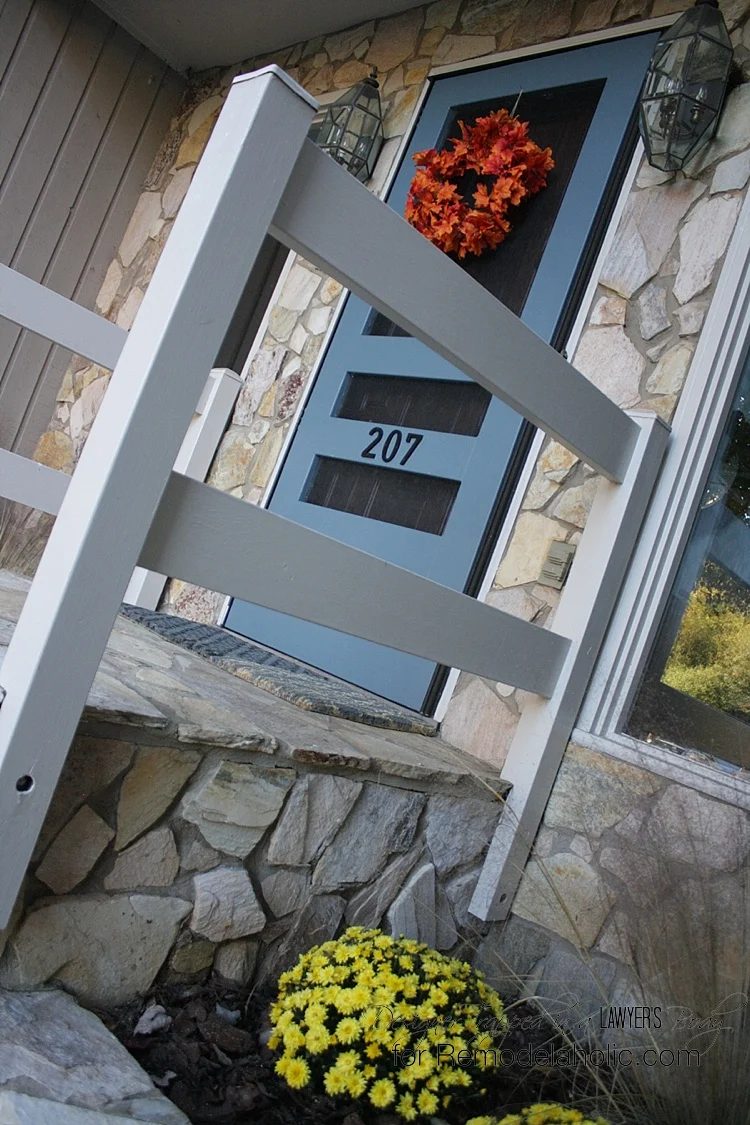

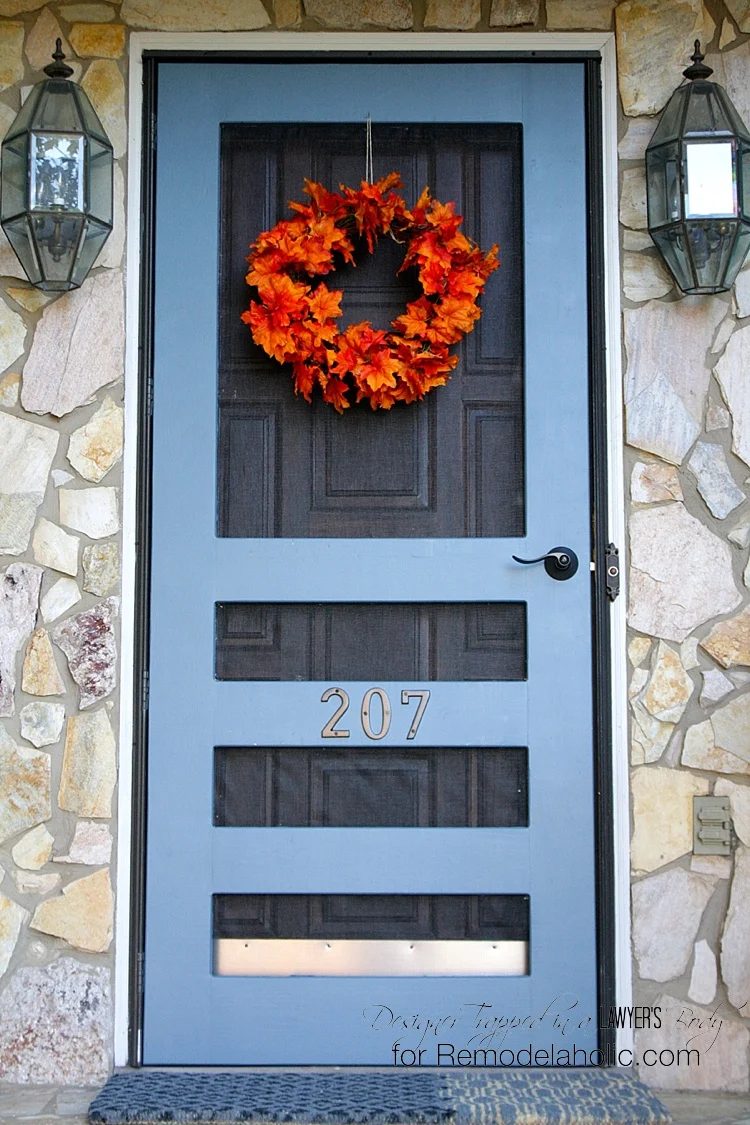

13) Now, you are ready to hang your screen door and admire your work!
Time and Cost Involved:
We LOVE how our Handmade screen door turned out. This is not one of those Handmade projects that I can tell you saved us a ton of money or time. But we got EXACTLY what we wanted and this screen door is far superior quality to those screen doors that you can purchase for $75 to $100. The lumber cost us around $32.00 and the screening cost $10.00. The door knob/handle cost $35.00 and the address numbers cost $9.00, but you would need to purchase those for an off-the-shelf door, too, so that’s kind of a wash. So, we did save some money–around $30 to $50–on the door itself. We used leftover paint to paint it, so we did not have to buy paint, which helped.
It’s very difficult to estimate how much time this took us to build, because we were only able to work on it 30 minutes here and there {our twin girls came down with fevers the week we were working on it, so life was even busier than usual, LOL!}, but I would say it took around 5 hours to build it {excluding during time for the paint and spackle}. Well worth it to get precisely the door we wanted!
I would love for you to head over to my blog, Designer Trapped in a Lawyer’s Body, to explore some of our other thrifty renovation projects, like how we totally transformed our kitchen for less than $700, which features the Handmade painted and stenciled kitchen floors that you saw in my last contributor post and our solid Handmade pipe table that we made for a fraction of the cost of the West Elm inspiration version. You may also want to see our thrifty bathroom makeover, which includes the Handmade concrete vanity that you saw in my first contributor post and a fabulous Handmade industrial light fixture. I hope to see you over in my corner of blog land soon!
Want to refer back to this later? Pin it!
——————————————
A great door makes such a difference, whether it’s for an entry door or an interior door. I painted my doors black in my last house, and a dark gray in this house and I love the drama that it brings the room — but you could also try red or yellow or any color!

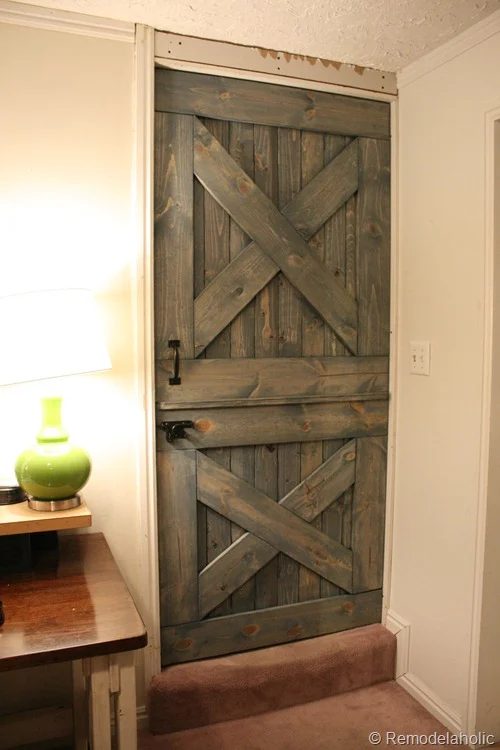

We added a barn style dutch door (baby gate!) that we love:

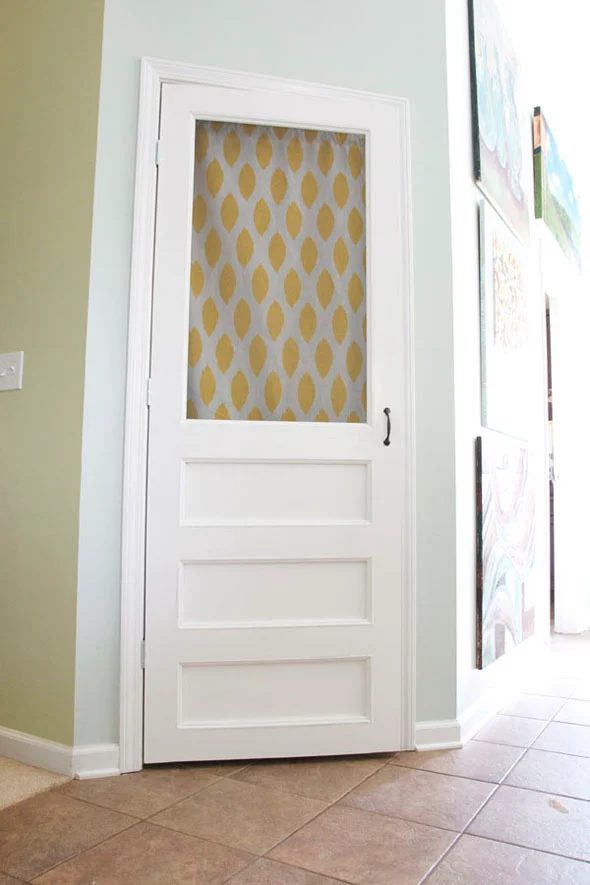

or you can also build a screen door for a pantry like this:
