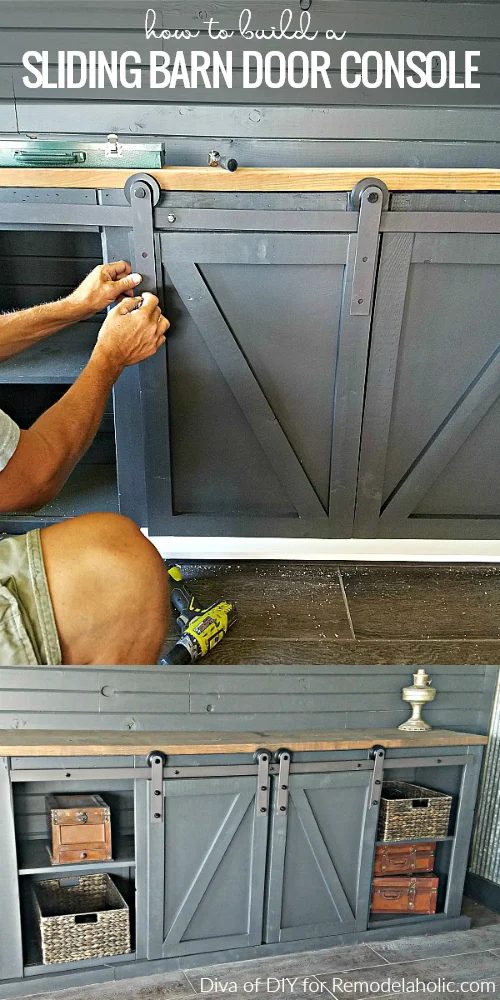

Wow! look at this sliding barn door entertainment center! It will hold it all: games, game systems, DVDs, smart devices, cable boxes, you name it!
Need more man cave options? look at our Modern Man Cave mood board, How to Add Storage to a Manly Space, and 25 Bedrooms for Teen Boys.
By Leanne from Diva of Handmade built in her Lake House Fixer Upper.
When we remodeled our lake house, we wanted to incorporate a game room/man cave into the floor plan. My teenage boys love gaming with their friends and my husband loves sports. Having a room with multiple televisions fell high on our wish list! I ran across a plan for Ana White’s Grandy Sliding Door Console. Even though her plan didn’t fit my space, it gave me enough confidence to tackle a modified version on my own.
Build your own farmhouse TV console following this woodworking plan.
How To Build A Sliding Barn Door Entertainment Center: The Supplies
This supply list is for one console. The finished pictures are with 3 consoles. This post contains affiliate links. You can read our full disclosure here.
- 2 – 1×8 @ 8 feet long
- 2 – 1×10 @ 8 feet long
- 1 sheet of 1/4″ thick PureBond plywood (for doors)*
- 1 sheet of 3/4″ thick PureBond plywood (for sides)
- 3- 1×3 @ 8 feet long (for door trim if using this design)
- 2 – 1×2 @ 8 feet long
- 4 – 1×4 @ 8 feet long
- 8 – 2×3 @ 8 feet long
- Hardware for sliding doors (see our Bekob picks for modest-cost-friendly sliding door hardware here)
- 2 1/2″ screws
- 1″ finish nails
- Wood Glue
- Wood Filler
- Paint or Stain
How To Build A Sliding Barn Door Entertainment Center: The Cut List
Frame
- 4 – 2×3 @ 84″
- 4 – 2×3 @ 17″
- 4 – 2×3 @ 14″
Sides
- 2 – 3/4″ thick plywood cut 36″ x 17-1/4″
Face Frame
- 5 – 1×4 @ 36″
- 8 – 1×4 @ 17-3/4″
Shelves
- 2 – 1×8 @ 87″
- 2 – 1×10 @ 87″
Middle Shelf Supports and Cleats
- 5 – 1×2 @ 14″
- 5 – 1×2 @ 17″
Bottom Trim
- 1 – 2×3 @ 90″
- 2 – 2×3 @ 18-3/4″
Top
- 2 – 2×10 @ 91″
Doors
- 2- 1/4″ thick plywood cut 20″ x 30″
- 4- 1×3 @ 30″
- 2- 1×3 @ 15″
- 1- 1×3 @ 29 1/4″ from corner to corner cut at an angle of 28 degrees
How To Build A Sliding Barn Door Entertainment Center: The Process

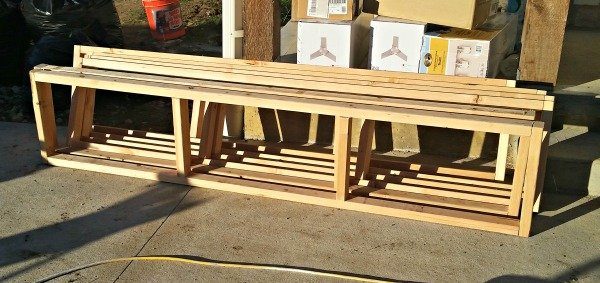

Step 1) Build The Frame

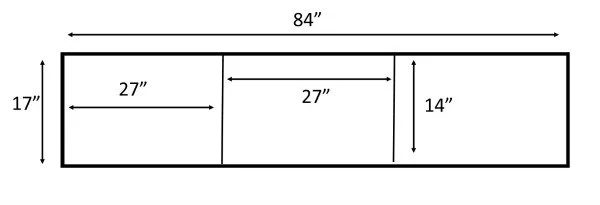

The frames are pretty self-explanatory but I have included a finished picture as well as a detailed diagram. I made 3 separate consoles so that is why you see 6 of these frames.

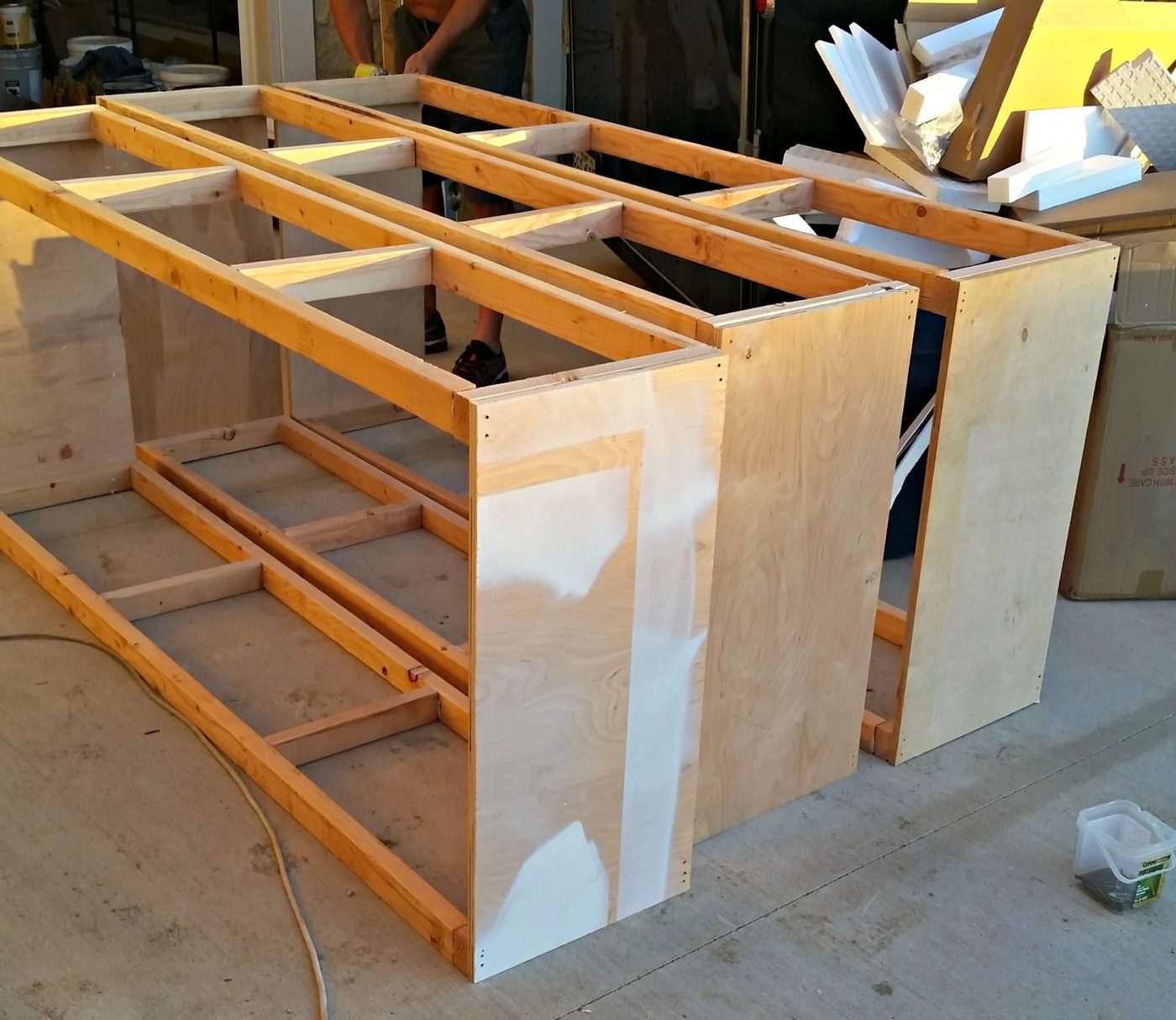

Step 2) Add The Sides
Attach the 3/4″ plywood by first applying a bead of wood glue around the edge of the plywood and secure using 2 1/2″ screws. Repeat with each section.
Step 3) Attach to the wall.
I apologize but I forgot to take a picture of the frame installed before face frame, shelves and cleats were installed but I have included a diagram below to give you the measurements.
I installed tongue and groove car-siding for texture which shows through the open back side. Another great option would be to paint a contrasting paint color or add a fun wallpaper on the wall behind the console.

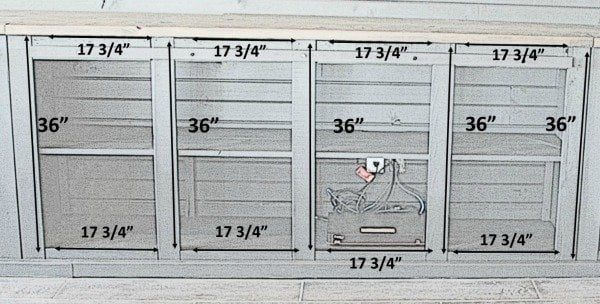

Step 4) Add The Face Frame

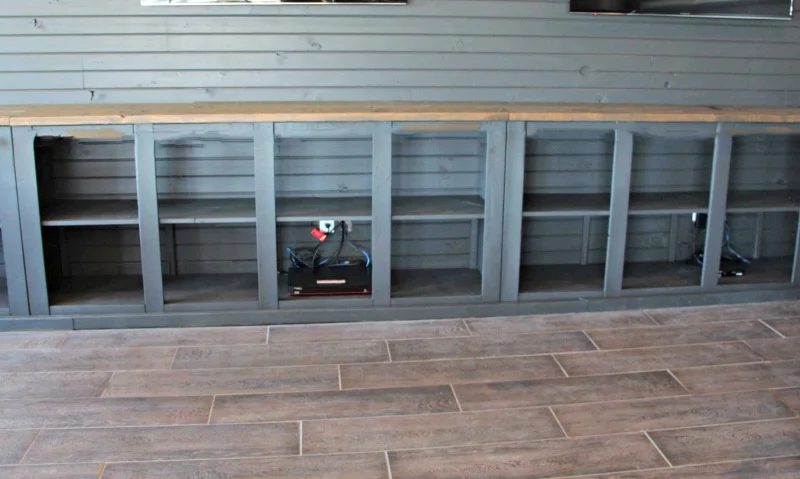

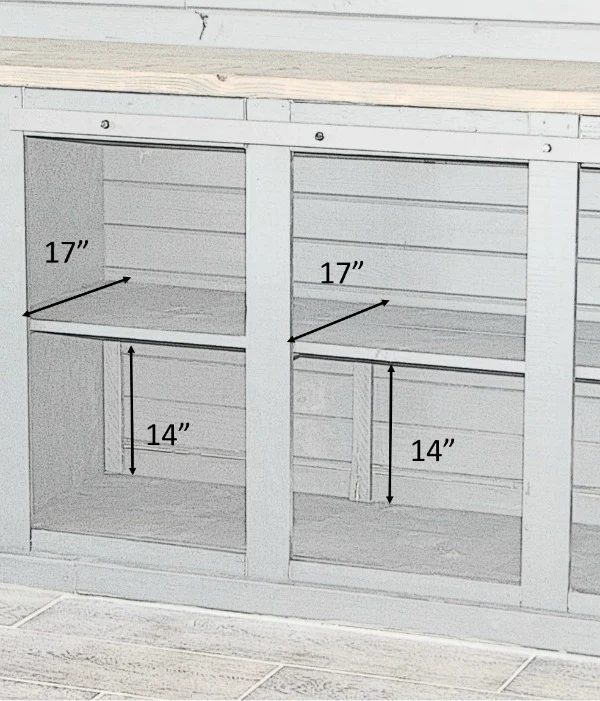

Step 5) Add cleats and shelves
Step 6) Add top boards.
Don’t attach at this point because it will make it more difficult to paint or stain them.
Step 7) Stain or paint frame and top
Frame and doors: Sherwin Williams SW Iron Ore (same color that Cassity used here!)
Top (Pine): Custom Minwax stain color mix of 50/50 Classic Gray/Jacobean
Step 8) Make Doors
You could also make traditional shaker cabinet doors following this walkthrough here.

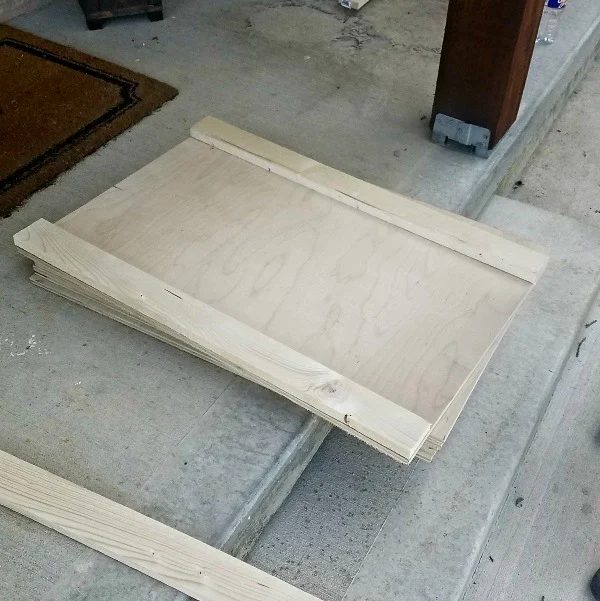

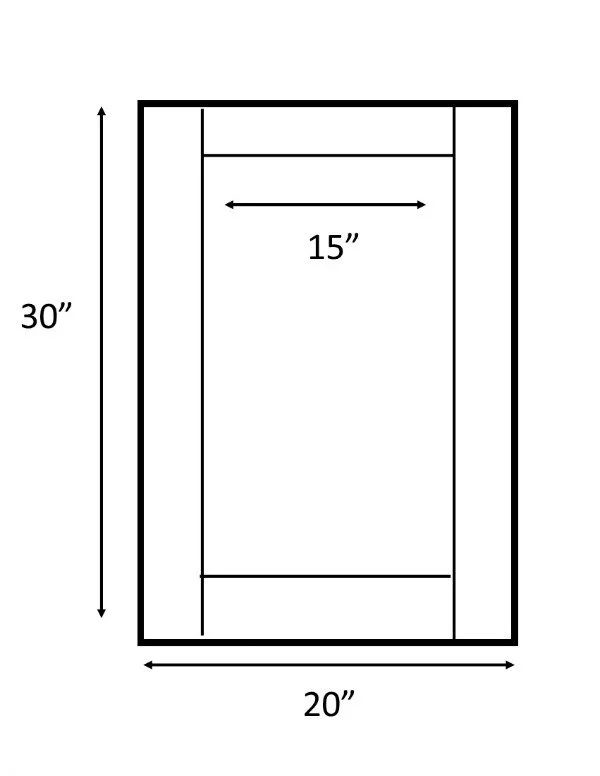

Rip plywood to 20″ x 30″ panels (or size of opening). With nail gun, attach the two 30″ trim boards to the plywood panel.

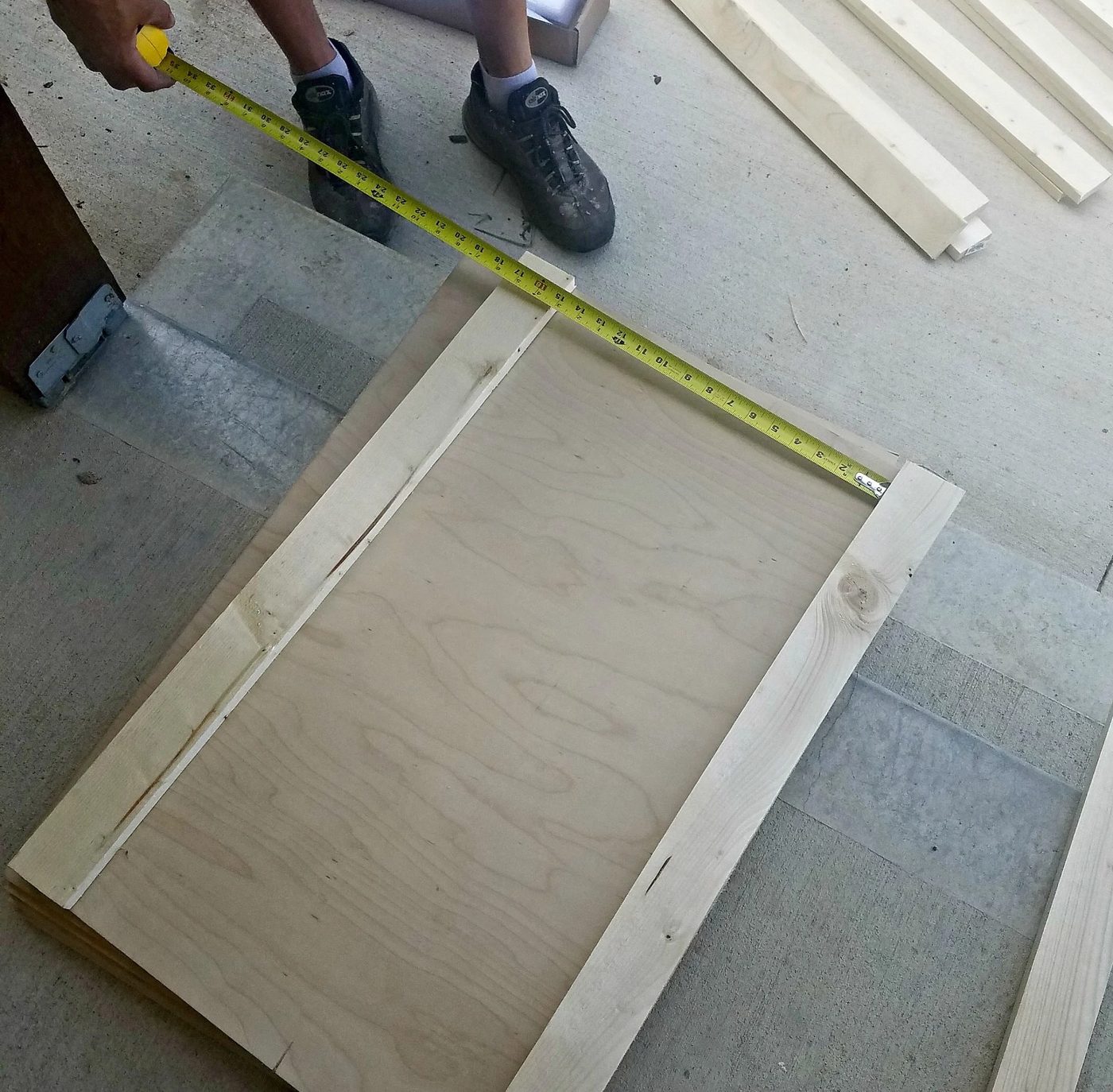

Double check your measurement and cut the remaining trim boards to finish the door panel. Attach with nail gun.

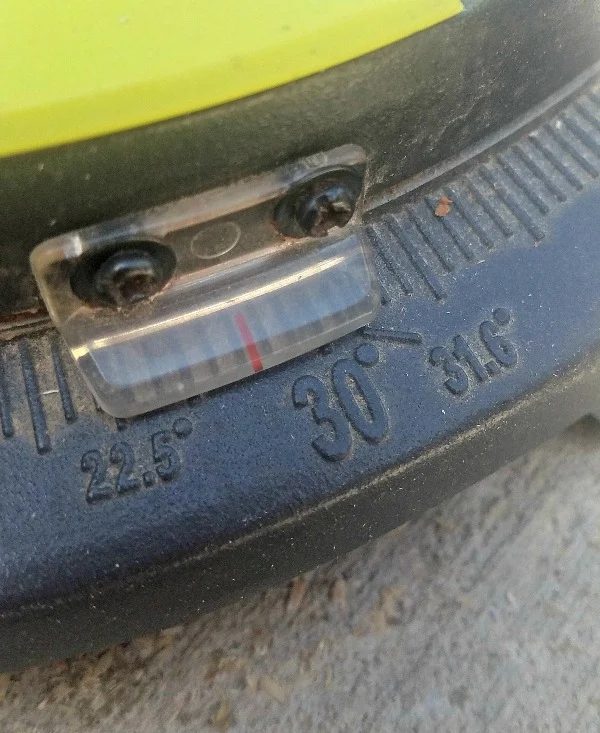

To create the diagonal design displayed on my entertainment center, your board will be 29 1/4″ long from corner to corner with an angle of 28 degrees. Again, attach with nail gun.

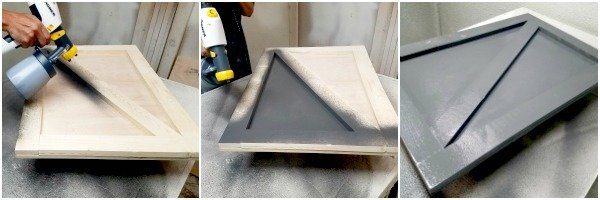

Stain or paint doors (or both!). I painted mine Sherwin Williams Iron Ore to match the frame. (This is the same color Cassity painted her interior doors and colorwashed her barn door here to add color while still showing the wood grain.)

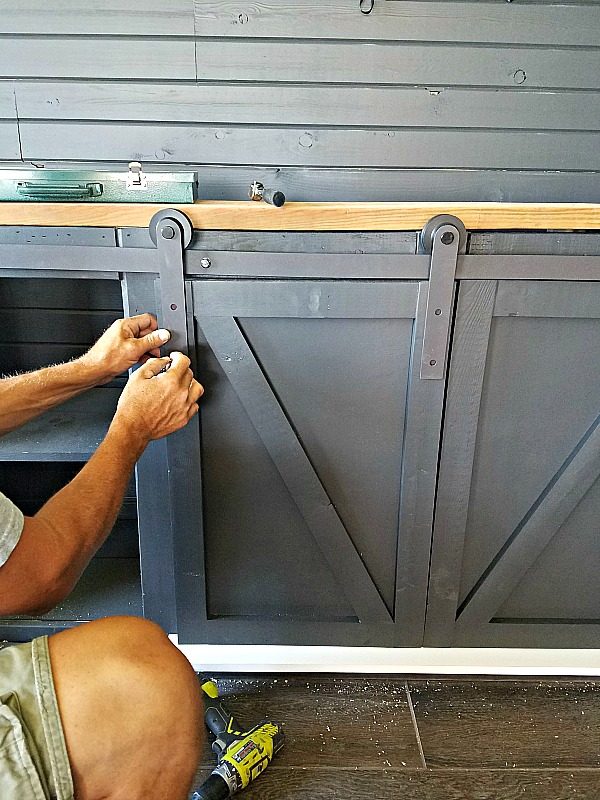

Step 9) Hang Doors
I followed the instructions included with my sliding door hardware. See our Bekob picks for modest-cost-friendly sliding door hardware here.

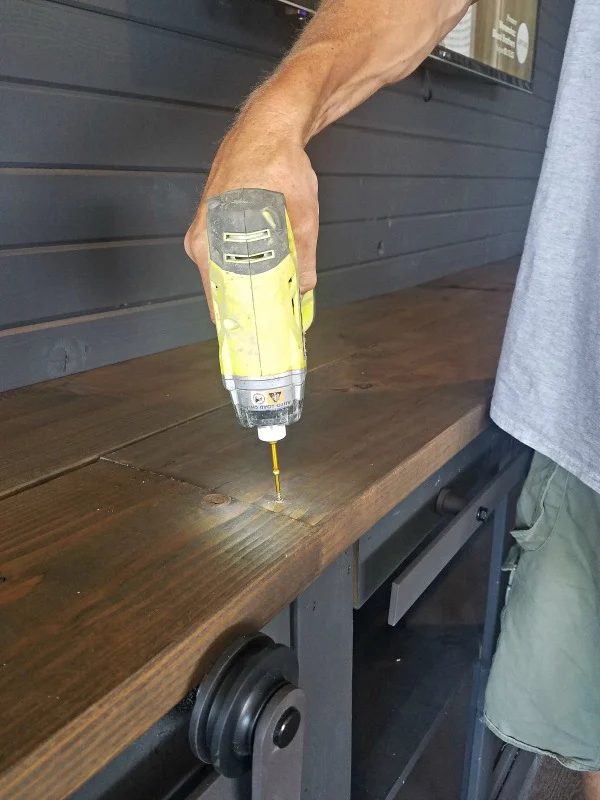

Step 10) Attach top boards to the frame

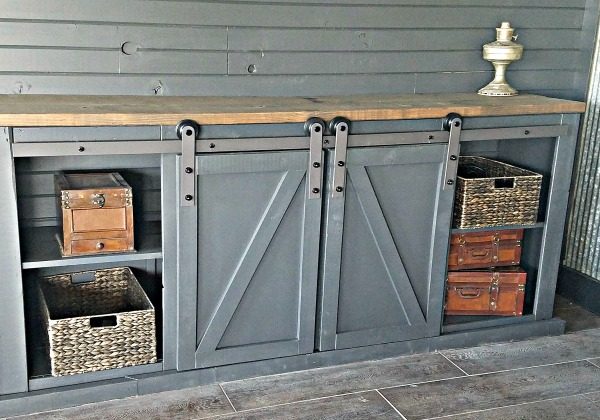

That is it! Not too bad for an entire sliding barn door entertainment center, right? Now it’s time for the fun part…the accessories.
I chose chunky baskets, old trunks and metal containers to accessorize our man cave opening shelving. They add extra storage while keeping a masculine feel.

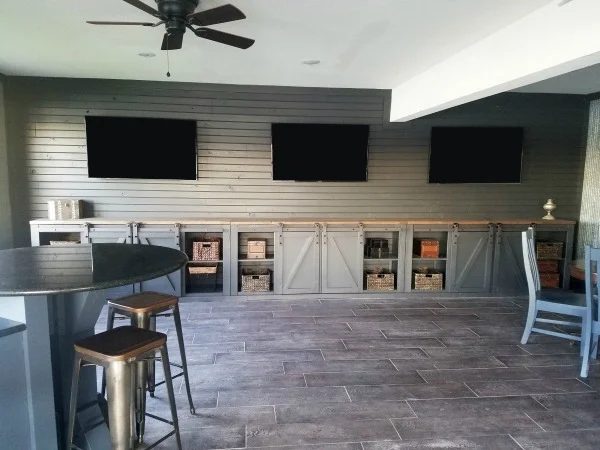

I am so happy with the way my sliding barn door entertainment center turned out. All of the game systems and cable boxes are hidden behind the barn doors when not in use, but the doors easily slide open to give access when needed. The extra storage is well fitted for all of the PS4/XBox games and our DVDs and I even have a basket for remote controls. Life is good for all of us!
