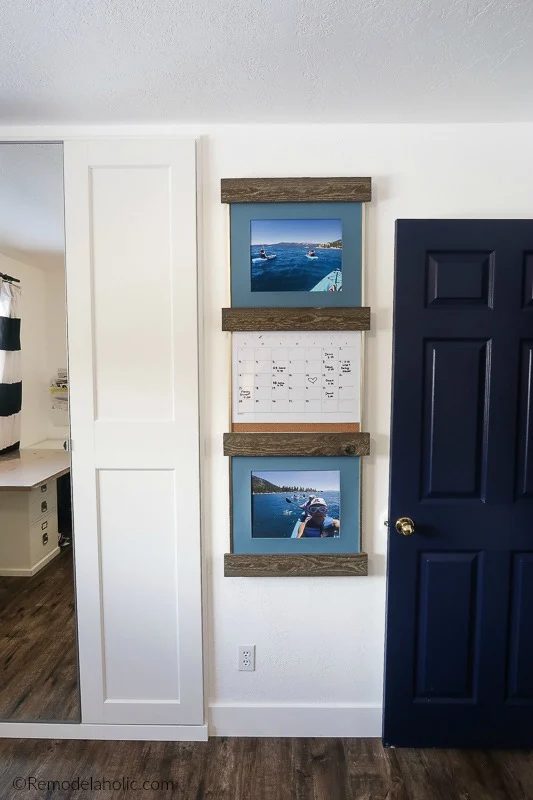

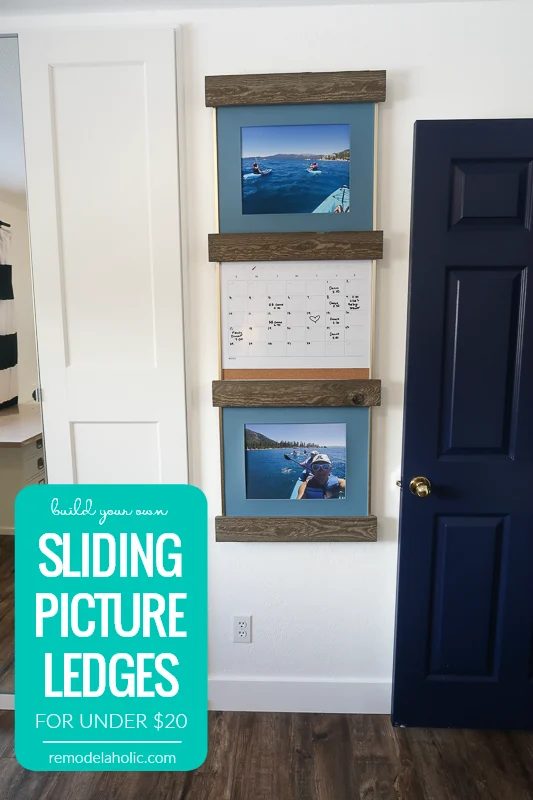

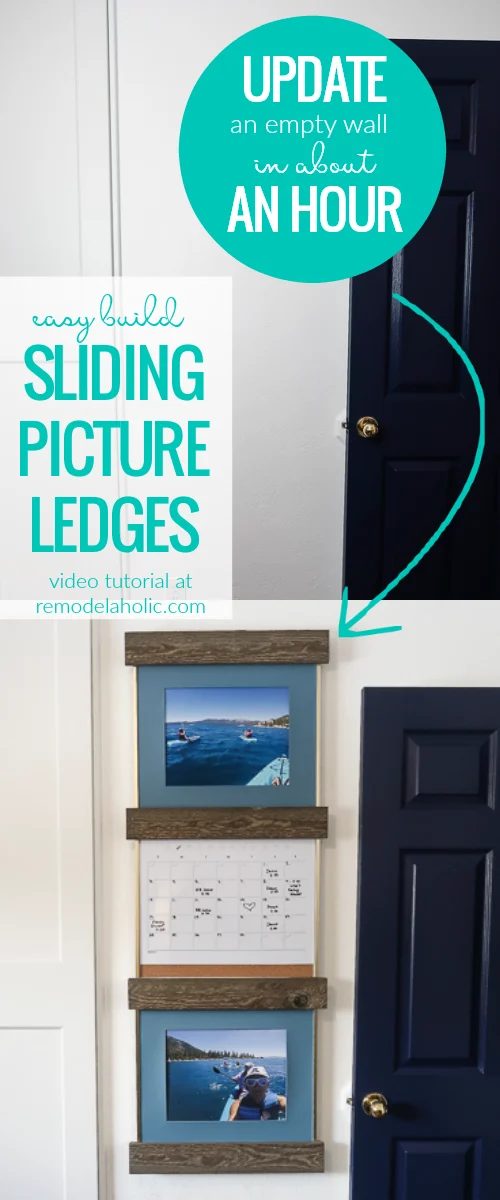

When we showed you the our girls’ room closet transformation last week, you may have noticed the empty wall to the right of the closet doors… well, it’s empty no more! These sliding picture ledge shelves were a quick and straightforward build and they give that narrow section of wall both a purpose and some style — in less than an hour of work time!

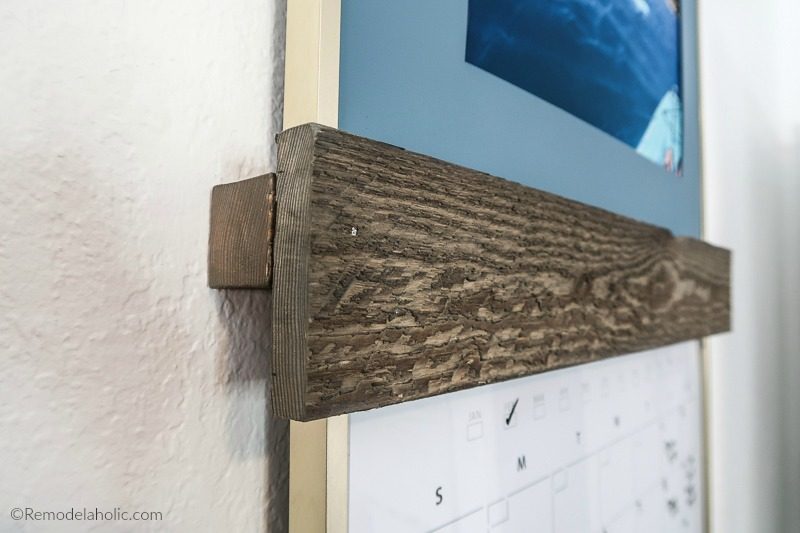

All in all, these rustic wood ledge shelves cost under $20 and took less than an hour of hands-on time (just waiting for the stain to dry!). The modified photo ledges feature a lip on the lower shelf to hold the frame on the shelf AND a lip on the upper shelf to prevent the frame from tipping and falling off the shelf — plus, we love the way it gives the wall a bit of gallery style and makes it into a continuous full wall art installment instead of a series of shelves. Get the building instructions below and watch the video from our YouTube channel to see how fast and straightforward these are to put together — a great first-time building project!
open this to subscribe to our YouTube channel and see more straightforward first-time building projects
Handmade Sliding Photo Ledge Shelves

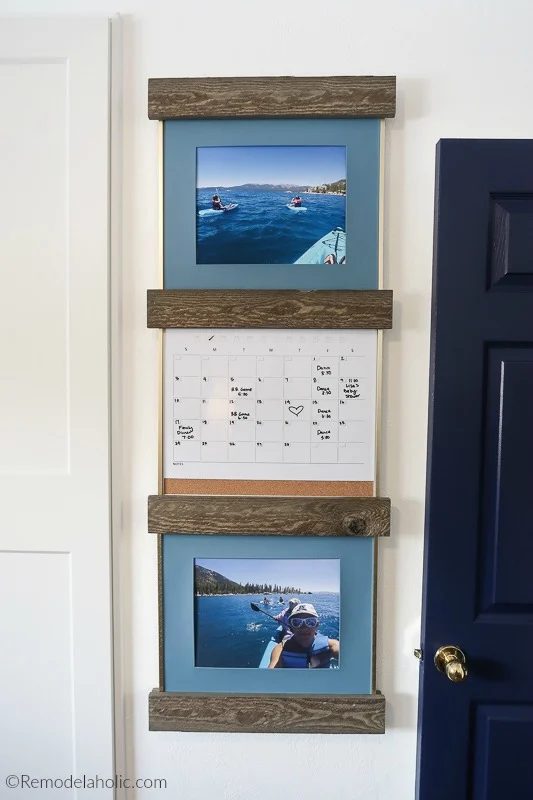

Love building? open this to sign up and get an email every time we post a new building plan!We used the wood shelves to fill an awkward small wall space, adding family photos and a much-needed calendar to the 3 shelves. (You might recognize the gold frames and colorful photo mat from our color-binge neutral living room update a bit ago!)
These shelves are so straightforward to adjust to whatever size frame, calendar, dry erase board, chalk board, cork board… you get the option. You could also mount your go-to prints (from our new shop or our collection here) on boards like this walkthrough shows and then slide them on the shelves — seriously, anything you want to display can go on these shelves, and you can make them any length or stain them any color (especially if you use our go-to color-washing trick for colorful wood stain!)
We also think this would be a great solution to hiding those can’t-move-em indoor eyesores on the wall — a shelf like this could cover up cords, breaker box access doors, alarm control panels, cable or phone jacks, etc while still maintaining quick and straightforward access — maybe even be adapted to cover up a television (now the gears are turning!)
The top section fits the frame nicely so it won’t tip or fall in the event of an earthquake, or, more common around here, from kid roughhousing, slamming doors… or maybe a sledgehammer taking down a wall somewhere… If you prefer the frame to fit more snugly against the top shelf lip, or to sit a bit more vertical without leaning, you can stuff a couple of grocery bags behind or cut a piece of foam to wedge the frame in place, or use a deeper frame than we did.
Where would you put a set of shelves like this? Get the building instructions below and watch the video above and you’ll have a snazzy new set of sliding photo ledge shelves in no time!
How to Build a Set of Sliding Picture Ledge Wood Shelves for $20 or Less
This post contains affiliate links. Learn more and read our full disclosure policy here.
Materials to build a set of 4 20-inch picture ledge shelves
- 2 – 8 foot boards: 1- 2×2 and 1 – 1×4 (see the video for the different options we looked at and why we chose this pre-finished board)
- paint or wood stain (make your own with these homemade stain recipes)
- 2 1/2 inch screws
- brad nails
Recommended tools
- carpenter’s square
- miter saw or miter box
- level
- drill
- countersink drill bit (or just a larger drill bit like we used in the video)
- brad nailer, or hammer and small nails
Building Instructions
Step 1: Cut the boards to length.

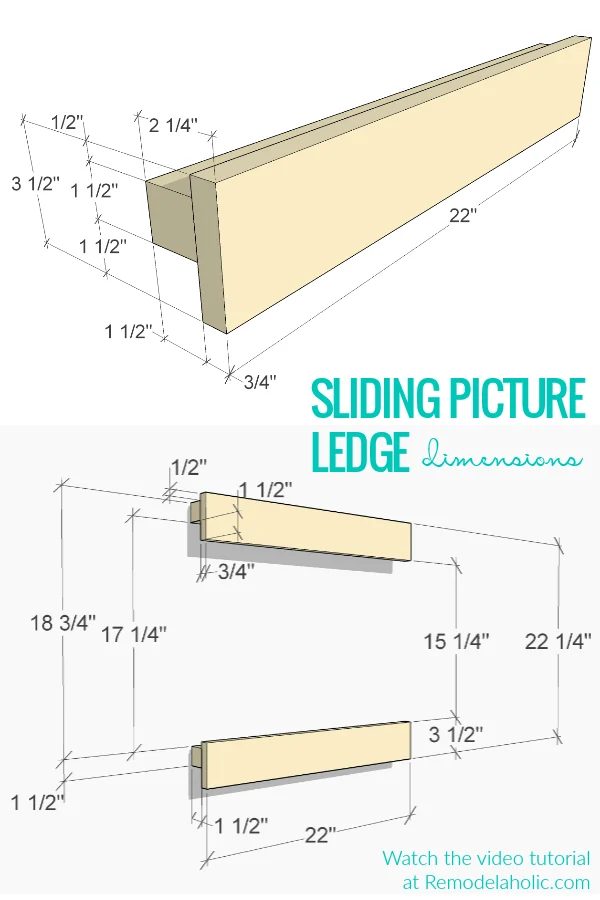

For a set of 3 shelves plus a top ledge, we cut 4 sections of each board (the 2×2 and the 1×4) so from an 8 foot board, you could make the shelves a bit wider at closer to 24″ if you wanted, without needing to buy additional boards. We’ve included our sketch-up layout and dimensions for these 22″ shelves below for reference.
Step 2: Stain.
Since we were using a prefinished wood for the front of the ledge shelves, we stained the cut ends and the 2×2 sections to match, using a custom stain mixed from two stains we had on hand. This is the only step that takes very long… waiting for the stain to dry.
Step 3: Measure and mark the shelf and stud locations.
The total dimensions our thin-edge 16×20 frames was only about 16.5″ by 20″ so we measured out an 18 3/4 inch gap between the *top* edges of *each* 2×2 ledge to give us the gap size between the shelves that we wanted. We found the stud and predrilled holes in the 2x2s so we could screw directly into the studs.
Quick Bekob Tip: When attaching something like this to the wall, predrill the holes and then insert the screws partway into the board, to save you time drilling the screws all the way through the board while holding the board in the correct spot on the wall.Step 4: Add the ledge fronts.
Mark the ends of the 1×4 boards, then hold them in the correct location on the 2×2 ledge and nail in place.
Then just slide the photo frames into the picture ledge and voila — an easily changeable gallery wall style set of shelves. Where will you put a set of shelves like this in your home?
More straightforward Handmade wall shelves:
Handmade suspended floating wall shelves
video walkthrough: how to build a floating shelf

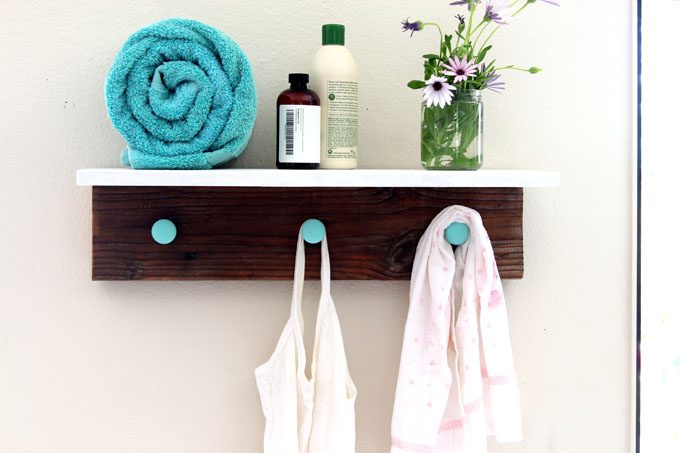

straightforward hanging wood shelf with knobs
